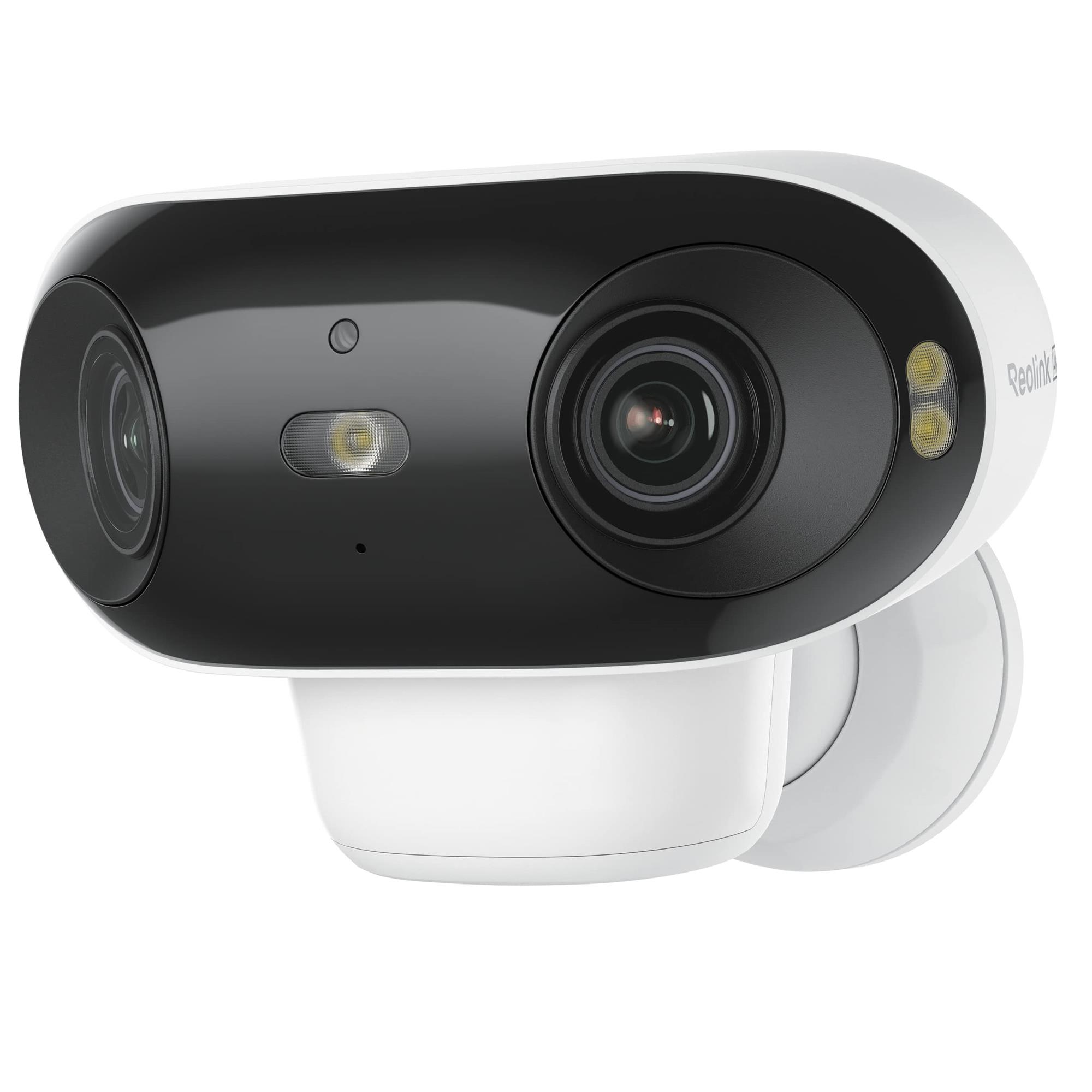

REOLINK ARGUS B740X (8 MP) - DUAL-LENS PANORAMIC IP CAMERA

Two sensors stitched into a single 180-degree frame

B740X is not an ordinary wide-angle camera but a dual-lens device: two 4 mm optics feed the processor, which stitches their images into one continuous 5120×1440 frame with no visible seam in the middle. The difference from a classic fisheye is substantial — a fisheye buys width with curved geometry and soft edges, whereas here each half of the picture is taken by its own lens with normal perspective, so a person standing at the edge of the panorama looks as proportionate as one in the centre. A horizontal span of 180° means that, mounted on the corner of a house, the camera holds both walls and both approaches to them at once; placed mid-facade, it covers the yard from fence to fence. Instead of two separate cameras with two streams and two cable runs you get one mounting point and one event timeline in the app, which simplifies both the installation and the daily review. The geometry has a downside too: the vertical angle is around 50°, so the frame is wide and shallow and the area directly beneath the camera falls outside it — a mounting height of roughly 2.5-3 metres with a slight downward tilt matters more here than on a conventional camera.

Battery and Wi-Fi mean event recording, not continuous coverage

The camera runs on a built-in 5000 mAh battery over Wi-Fi, so there are no cables at the mounting point at all — but the cable takes continuous recording with it when it goes. Most of the time the unit sleeps; it is woken by a PIR sensor covering about 170°, which reacts to the heat contrast of a moving body out to roughly ten metres, and only then do both imagers start. The archive therefore consists of individual clips around each trigger rather than an unbroken day-long timeline you can scrub through, and for a yard, a porch, a terrace or a small shop that is usually enough, because everything that matters comes with movement. If a continuous archive is the actual requirement — a till area, a stockroom under someone's liability, a production bay — a battery camera is the wrong tool by definition, and the money is better spent on a wired PoE model from this same catalogue. One more consequence of running on a battery: two 5120×1440 streams put real load on the radio, so a solid Wi-Fi signal at the exact mounting spot is a working condition rather than a nice-to-have.

ColorX: colour after dark without infrared illumination

Night performance here is built on optics rather than on IR LEDs: a 1/1.8-inch sensor — noticeably larger than the usual 1/2.7 — paired with f/1.0 lenses gathers enough light for the camera to stay in colour where an ordinary model would already have flipped to monochrome. That is not a cosmetic difference: a colour frame preserves identifying details such as the shade of a jacket, a car body or a bag, while a grey silhouette is something you can describe neither to the police nor to a neighbour, and this is precisely where cheap cameras stop being useful. When there is no ambient light at all, three 2 W spotlights at 6500 K take over, lighting the scene and deterring at the same time — a sudden burst of white light tells an uninvited visitor plainly that he has been noticed. Be realistic about working distance at night: the large sensor buys image quality rather than reach, and in practice this camera owns the first ten metres — the porch, the yard, the driveway — not the far corner of a plot. If long-range night coverage is what you need, look at wired models with thirty metres of infrared instead; this is a different instrument for a different job.

Runtime, Wi-Fi 6 and the optional 6 W solar panel

A 5000 mAh cell has to feed two imagers, so the interval between charges is decided by trigger count rather than by the spec sheet: a quiet yard with a dozen events a day runs for months, while a cafe terrace with constant footfall will flatten the battery in weeks. Charging is over USB-C, and for permanent installation Reolink offers a 6 W solar panel sold separately; with it you can raise sensitivity and stop rationing night recordings, because the daytime top-up offsets the consumption. The wireless side is modern — dual-band 802.11ax with WPA3 support: the 5 GHz band moves the heavy panoramic stream faster, while 2.4 GHz penetrates walls more reliably and is the one to choose at the edge of coverage. Allow for winter: cold reduces usable lithium capacity, the short day gives the panel less energy, and snow on the panel glass nearly cancels charging altogether, so once a season the camera will probably need to come down for a manual top-up. A useful everyday detail: even a short charge buys several days of standby duty, so the camera will not sit completely dead if you cannot get to the site immediately.

Person, vehicle and animal detection, a 512 GB card and integrations

Analytics run inside the camera and classify people, vehicles and animals separately, so alerts can be limited to the categories you care about — a dog owner stops receiving night-time pushes about his own pet and starts reacting only when a person appears at the fence. Clips are written to a microSD card of up to 512 GB, and with event-based recording that translates into hundreds of stored episodes: at this capacity overwriting does not reach the oldest files for weeks of observation. H.264 and H.265 are both available and chosen to suit the link: H.265 roughly halves the bitrate, which on a 5120×1440 panorama directly affects both how quickly a clip uploads and how much charge the radio consumes. According to the supplier specification the camera supports RTSP, ONVIF and FTP, works with Reolink recorders and integrates with Home Assistant, so it can live inside your own smart-home setup rather than only inside the vendor app. The limit of that compatibility should be clear from the start: even under a third-party server a battery camera stays event-driven and will not hand over a round-the-clock stream — that is a property of its power source, not of its software.

Where this camera belongs and what it was designed for

Its strongest suit is any spot where coverage width matters from a single mounting point: the corner of a house, a wall overlooking the whole yard, a terrace, a gateway, a small retail floor, an open-plan office, a parking area for a few cars. The 400 g body measuring 128×87×80 mm carries an IP66 rating, so mounting it on an exposed facade without a canopy is acceptable — unlike models rated only IP64. The -10…+55 °C range suits most of the year, but a long frost visibly shortens runtime, and in such a location the solar panel becomes effectively mandatory. Where it clearly does not belong: long-range identification at tens of metres, since a panorama spreads its pixels across 180° and pixel density at distance is lower than on a narrow-angle camera; continuous archiving; and locations with constant transit movement inside the PIR sector. One practical note as well: the panoramic frame looks great on a tablet, but on a phone screen a 32:9 strip is small, and you will find yourself zooming in for details.

How it compares with neighbouring Reolink models in this catalogue

Among the battery Argus models in this catalogue, B740X stands apart precisely because of its two lenses: the 5 MP B340 and B330 look through one 105° lens, cost less and last longer per charge, but cover roughly half the sector. B430 and Altas PT Ultra B660 take the other route — a motorised head: the total reachable sector exceeds 180°, yet the camera only ever sees the direction it currently faces, whereas B740X holds the entire panorama at once and misses nothing behind its back. If a network cable can reach the spot, the fairer alternative is the wired Duo Series P757: also dual-lens and panoramic, but PoE-powered, recording 24/7 and offering higher combined resolution. For a site with no internet at all B740X is simply out of the question, because it needs Wi-Fi; there the choice narrows to the Go series with a SIM card, such as G340 or Go PT Plus. In short: choose this model when you need wide cable-free coverage and colour at night at close range; if a cable is available a wired panoramic or standard PoE camera wins, and if distant detail is the goal, a narrow-angle or zoom model is the better buy.

Send us a sketch of the plot, or simply describe the point from which the whole yard is visible, and we will tell you whether a 180° panorama covers the approaches you care about from that single spot or whether two conventional cameras would serve you better.
