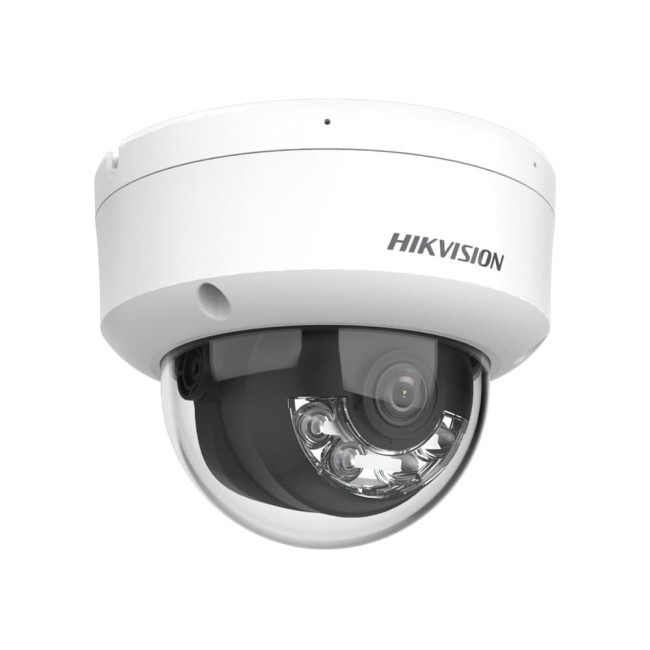

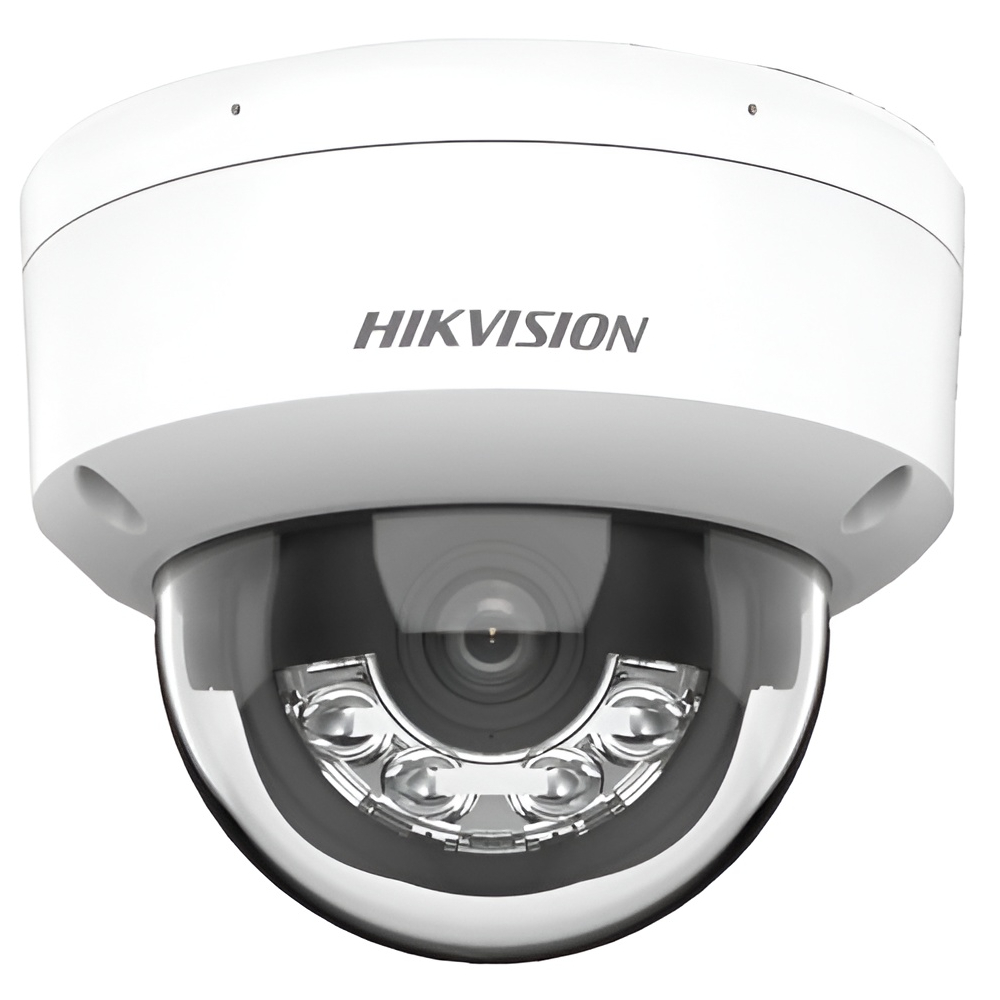

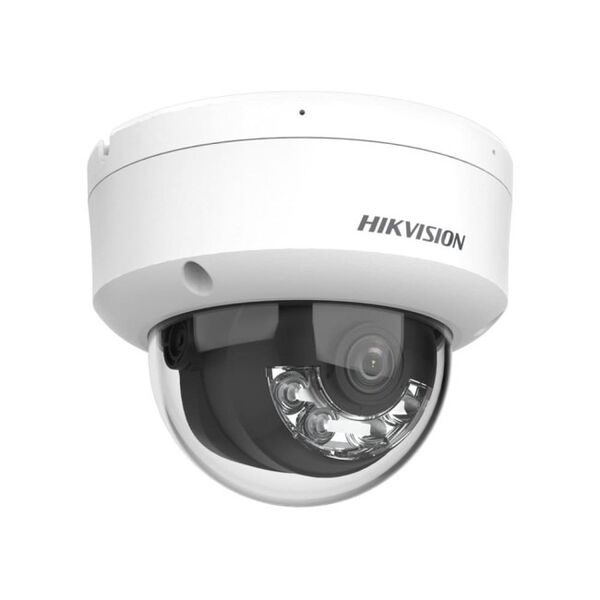

HIKVISION DS-2CD2143G2-LIS2U (4 MP/2.8 MM) - DOME PoE IP CAMERA

The DS-2CD2xxx Pro series: what the step up from the budget line actually buys

The second digit in DS-2CD2143G2 places this camera in the Pro series, and that is a different set of engineering decisions rather than a marketing tier. Against the budget DS-2CD1xxx line, this model brings true 120 dB WDR instead of software DWDR, an IK10 impact-rated housing, a microSD slot for cards up to 512 GB rather than 256 GB, and a 24-month warranty instead of 12. In daily use the WDR is the part that matters most: the camera pulls detail out of the shadows and the bright zone at the same time, so a face in front of glazed doors facing the sun, or at a garage gate against the sky, stays readable instead of collapsing into a black silhouette. For a site built to last and handed over under a service contract, the longer warranty and the metal housing mean fewer service visits, and that arithmetic is visible by the second year of operation.

Smart Hybrid Light: colour at night without a floodlight running non-stop

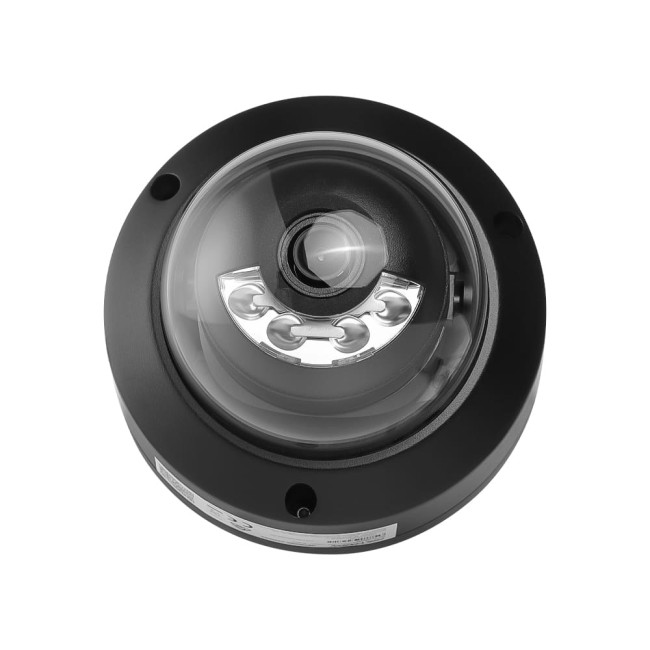

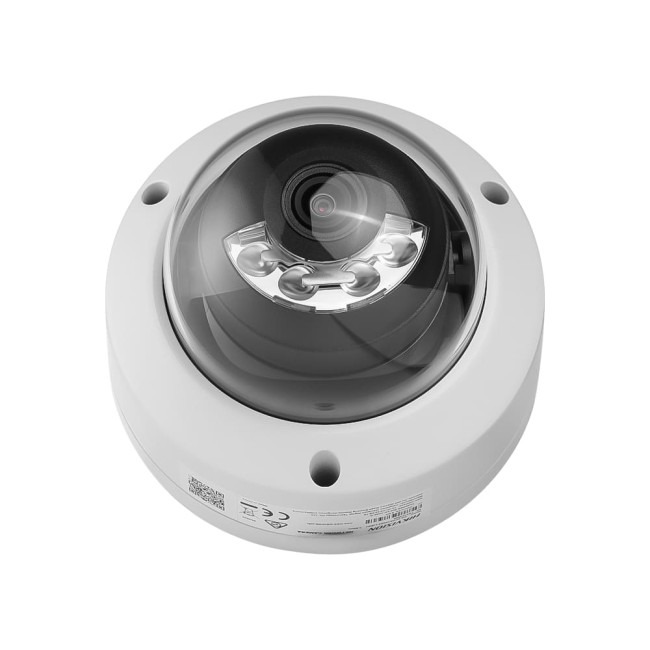

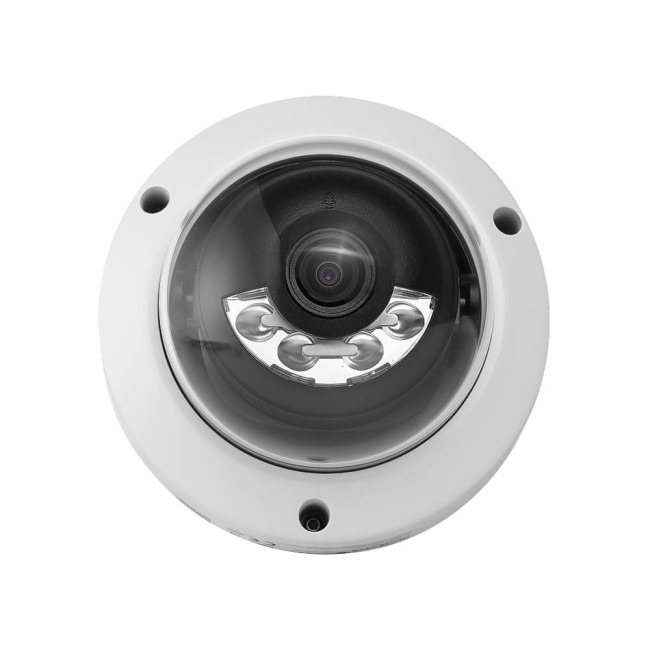

The L in the LIS2U suffix stands for Smart Hybrid Light: infrared diodes and a white LED sit in one illumination module, and the camera switches between them based on how it classifies the object in view. At night the scene rests on discreet IR light reaching about 30 metres, and when the analytics sees a person or a vehicle, the white LED comes on and the recording turns full colour. That beats both of the common alternatives: a classic IR camera gives you monochrome only, with no clothing or vehicle colour, while a ColorVu unit with permanently lit white light burns all night, annoys the neighbours and draws moths and mosquitoes straight into the frame. Several illumination modes are available, so you can keep hybrid mode on the driveway and IR only in the inner yard to avoid lighting up a bedroom window. The limit is worth knowing as well: white light is effective over the same 30 metres, so a far fence or a deep driveway calls for a model with 40 to 80 metres of illumination.

4 megapixels and a 104-degree angle: what you see and at what range

The 1/2.9-inch 4 MP sensor puts roughly twice as many pixels into the same frame as a 2 MP camera, so when reviewing the archive you can enlarge a fragment and make out detail that Full HD would have left as a coloured blur. The 2.8 mm lens with its 104-degree field of view is built for the overall picture: one unit covers an entrance gate, a mid-sized yard or a whole retail floor. As a range guide for this optic: motion is reliably caught at several dozen metres, a recognisable portrait comes out within roughly the first ten to twelve metres, and a licence plate is not dependably legible on a wide angle even at 4 MP. The 25 frames per second let you step through a recording frame by frame without losing the moment of a blow or an object changing hands. If detail at distance is the actual requirement, the answer is not more megapixels but a narrower 4 mm lens, and that version of this same model can be ordered separately.

AcuSense of generation G2: alerts you will not want to mute

The G2 marking means AcuSense is present: the object classifier runs inside the camera, so people and vehicles are separated from branches, shadows, rain and insects before an event ever becomes a notification. Pro-series analytics goes further than the budget line: besides motion detection filtered by object type, you get perimeter rules — line crossing and intrusion into a zone — so the camera reacts to a person crossing the property boundary rather than to something changing in the picture. Alerts travel by push and e-mail, the client software runs on Windows, macOS, iOS and Android, and cloud access is supported, so viewing the camera from a phone needs no port forwarding on the router. The value of that filtering is testable by one simple criterion: if a month after installation the owner still has notifications switched on, the system is doing security work rather than just writing video into the void. Animal detection is not declared in the specifications, so a yard with a dog will still need detection zones drawn by hand.

Alarm contacts and a dual microphone array: the camera as part of a security scenario

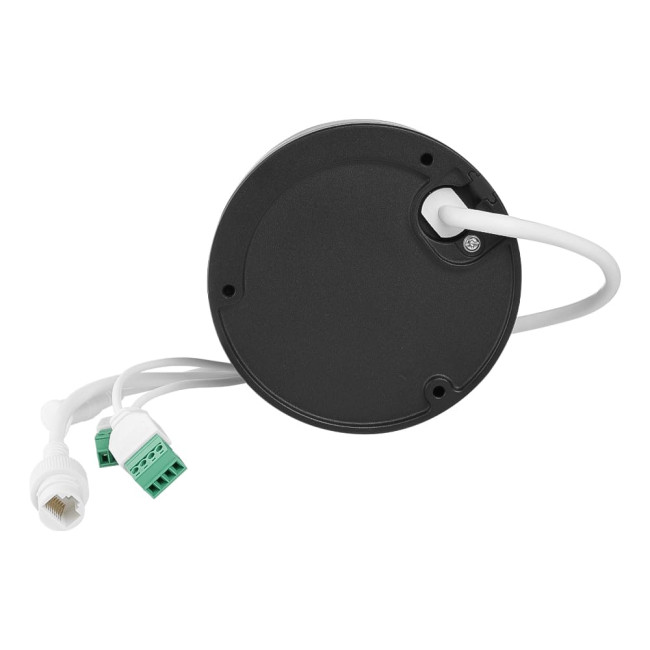

The S and 2U codes are what separate this version from the simpler LI2U: this configuration is specified with an alarm input and output and a two-microphone array for clean live audio. The alarm output turns the camera from a passive observer into an active element — on an AcuSense event it can close a relay on its own and trigger a siren, a light or a voice module without waiting for an operator or a recorder to react. The alarm input works the other way: a signal from a door contact, an IR beam barrier or a motion sensor makes the camera start recording at higher quality and send an alert even when nothing has formally changed in the frame. Two microphones in an array deliver intelligible sound with far less noise than a single cheap capsule, which genuinely matters at a checkout where you need to hear what was said to the customer. One practical point: these are dry contacts, so a siren or a floodlight is switched through a separate relay with its own power supply, and that belongs in the installation budget.

Mounting, PoE and housing protection

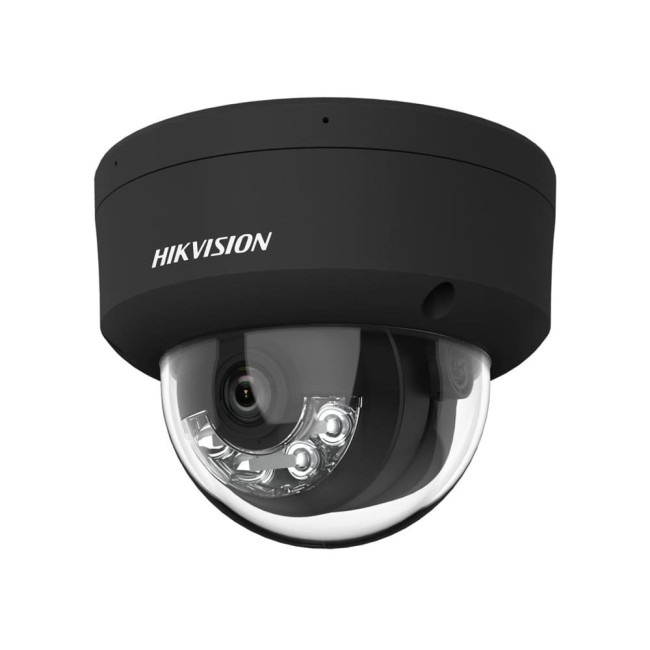

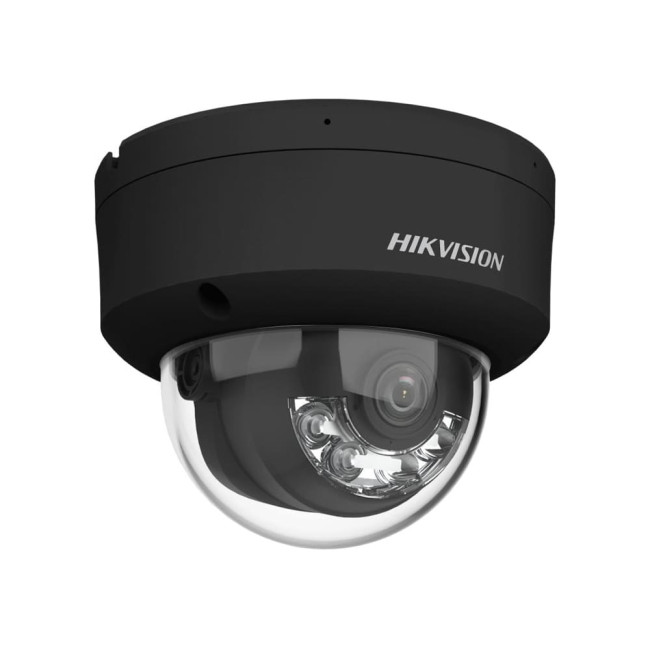

The camera runs on 12 V DC or on PoE 802.3af class 3 with a maximum draw of 8.5 W, and that is the figure to design around rather than a typical value: eight cameras add up to about 68 W, so a switch with a 60 W PoE budget no longer fits such a set. The metal-and-plastic body weighs 600 g at 121.5 mm across and 97.6 mm high, so in a plasterboard ceiling it is better fixed to a backing plate or a load-bearing profile than to toggle anchors alone. The combination of IP67 and IK10 means the camera survives both driving rain and a deliberate blow, which matters in a stairwell, a school, a gym or any facade position within arm's reach. The -30 to +60 degrees Celsius range covers a Ukrainian winter, and the black housing of this version is less conspicuous under a dark ceiling than a white one, often a plus on a retail floor. The 512 GB microSD slot holds a local backup archive in case the link to the recorder drops, while the main recording still belongs on an NVR in a locked room.

Where to install it and the jobs it was built for

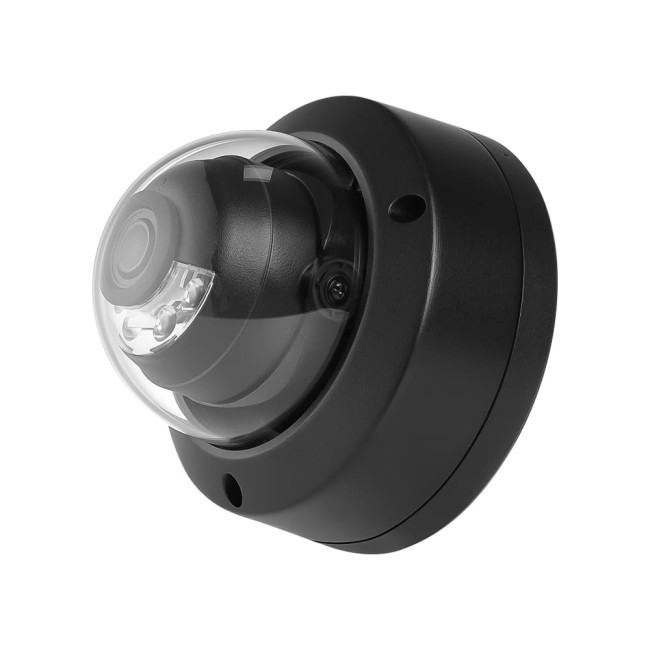

A dome housing with manual angle adjustment after mounting suits ceiling and under-ceiling positions best: indoors nobody can see which way the lens points, so a visitor cannot work out the blind spot at a glance. Natural positions are a retail floor and checkout area, a pharmacy, a bank branch, an open-plan office, a mid-sized warehouse, an apartment-block entrance, and outdoors a porch, an entrance gate or the area in front of a gate under a canopy. For exactly these scenes the pairing of 120 dB WDR with hybrid illumination earns its place: in a shop with a full-wall window or beside glass doors the camera holds both the dark interior and the bright street behind the glass. It is out of place on a long perimeter, at an entrance where plates must be read, or where the visible presence of a camera is itself the point; those cases call for a bullet model with long-range illumination and a conspicuous body. For a single camera in a flat watched from a phone it is also overkill, because the Pro-series capabilities would simply never be used.

How it differs from the neighbouring Hikvision models in this catalogue

Its nearest analogue here is the DS-2CD2343G2-LI2U: the same 4 MP Pro platform with hybrid light, but in an eye-ball housing and without the S code, meaning no alarm input or output; if no siren or external sensors are planned, that is a noticeably more affordable alternative with the same image. The DS-2CD2347G2H-LIU is a dome with a longer working illumination range of about 40 metres and lower consumption, worth comparing when the scene is deeper than 30 metres but alarm contacts are not needed. The DS-2CD1343G2-LIUF and DS-2CD1143G2-LIUF from the Value line are nominally 4 MP with AcuSense and hybrid light too, but without true WDR, without IK10, with cards up to 256 GB and half the warranty — enough for a corridor with steady lighting, not enough for a shop floor facing the sun. For an outdoor, elongated site, better options are the 6 MP bullet DS-2CD2063G2-LI with 40 metres of illumination or the DS-2CD2T83G2-4LI with 80 metres, because a dome simply does not throw light down a long driveway. So the DS-2CD2143G2-LIS2U is the choice for commercial premises or an entrance area that needs backlight tolerance, a protected housing, clean audio and the ability to drive a siren straight from the camera.

Send us a plan of the site with dimensions, ceiling heights and the list of points to cover, and we will work out how many cameras you need, the PoE budget on the switch and the archive depth for your recorder.
