HIKVISION DS-2CD2063G2-LI (6 MP/2.8 MM) - CYLINDRICAL PoE IP CAMERA

6 megapixels on a 1/2.4-inch sensor: why the picture size is not the whole story

The camera delivers a 3200 by 1800 frame, about three times the pixel count of an ordinary 2 MP unit, which in practice means you can enlarge a fragment of the archive and make out detail that Full HD would have left as a coloured smear. The more interesting part is elsewhere: those 6 MP are captured by a 1/2.4-inch sensor, physically larger than the 1/2.9 and 1/3-inch chips typical of this class, so every pixel collects more light. That is why the camera is rated at 0.005 lux in colour mode with an F1.6 lens, meaning the colour image holds up at dusk levels or under a street lamp without dropping to monochrome. A common buying mistake is chasing megapixels on a small sensor: such a camera looks sharp by day, then turns noisy and smears motion at night because each pixel is starved of light. Here the balance is deliberately shifted towards night performance, and that is the main argument for choosing this model for outdoor duty.

Smart Hybrid Light with 40 metres of reach and four illumination modes

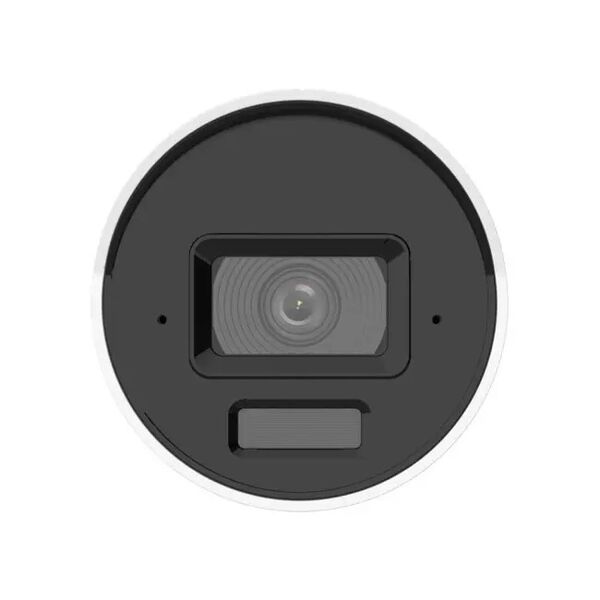

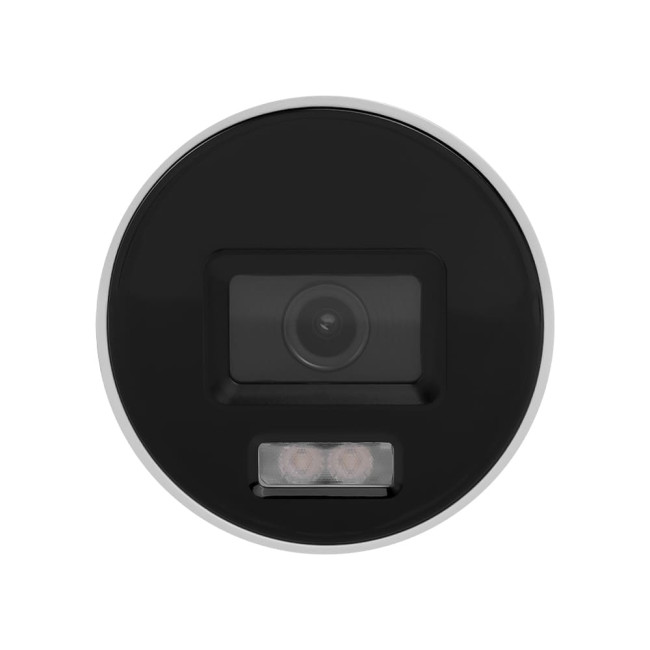

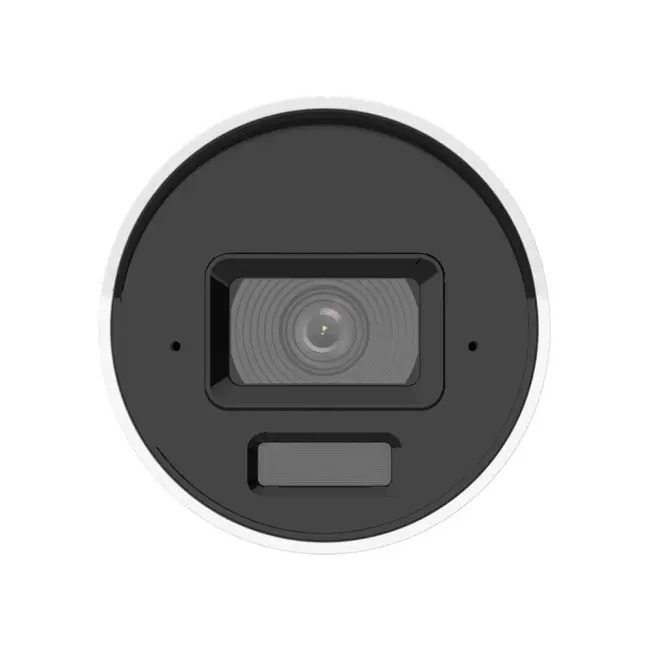

The LI suffix stands for Smart Hybrid Light: infrared diodes and white light share one module, and the camera decides which to use based on how it classifies the object in the frame. Working illumination range is 40 metres, a third more than the 30 metres common in budget models, and outdoors that gap matters: 40 metres covers a typical driveway between buildings or the whole long side of a plot fence. Four supplemental lighting modes are available, so the behaviour can be tuned to the spot — hybrid mode at the gate, with white light triggered by people and vehicles, and IR only facing a neighbour's windows so nothing blazes all night. The value of a colour night frame is purely practical: monochrome records a silhouette, colour records the colour of the jacket and the car, and those are the traits that let someone be identified from the footage. The limit deserves stating too: beyond 40 metres the camera sees only what other light sources illuminate, so a deeper scene needs a model with 60 to 80 metres of light.

True 120 dB WDR: shooting into the sun and at a gate against the sky

The DS-2CD2xxx Pro series uses hardware WDR with a 120 dB range rather than software shadow lifting, and the difference shows precisely in difficult scenes. The camera takes two exposures and merges them into one image, so a single frame keeps both the detail in the shade under a canopy and whatever happens in the bright zone beyond the gate. The classic decisive case: the camera watches an entrance, the street beyond the gate is bright, and a person approaches from the shaded side — without WDR you get a black silhouette on a white background and nothing more. The same applies to the low morning and evening sun that shines straight into the lens for several weeks a year, and to the headlights of a car pulling in at night. You can genuinely do without WDR only where the scene is evenly lit with no windows or openings in the frame, such as a windowless warehouse corridor.

AcuSense of generation G2: object-type filtering and perimeter rules

The G2 marking is not a housing revision but the presence of AcuSense, meaning neural-network object classification runs inside the camera itself. The model detects people and vehicles as separate categories, and the Pro series adds perimeter rules on top: line crossing and intrusion into a zone, so an alarm fires on a person crossing the property line rather than on any movement at all. The contrast with a G0-generation camera without AI is obvious within the first week of use: a camera with no classifier reacts to branches, shadows, rain and insects caught in the IR beam, the owner soon mutes the notifications as a nuisance, and the system stops performing security work altogether. Alerts arrive by push and e-mail, the client software runs on Windows, macOS, iOS and Android, so you can respond from a phone rather than only from a monitor. Animal detection is not declared for this model, so in a yard with a dog some false triggers will still have to be cut out with detection zones.

A metal bullet housing: mounting, sun shield and weather resistance

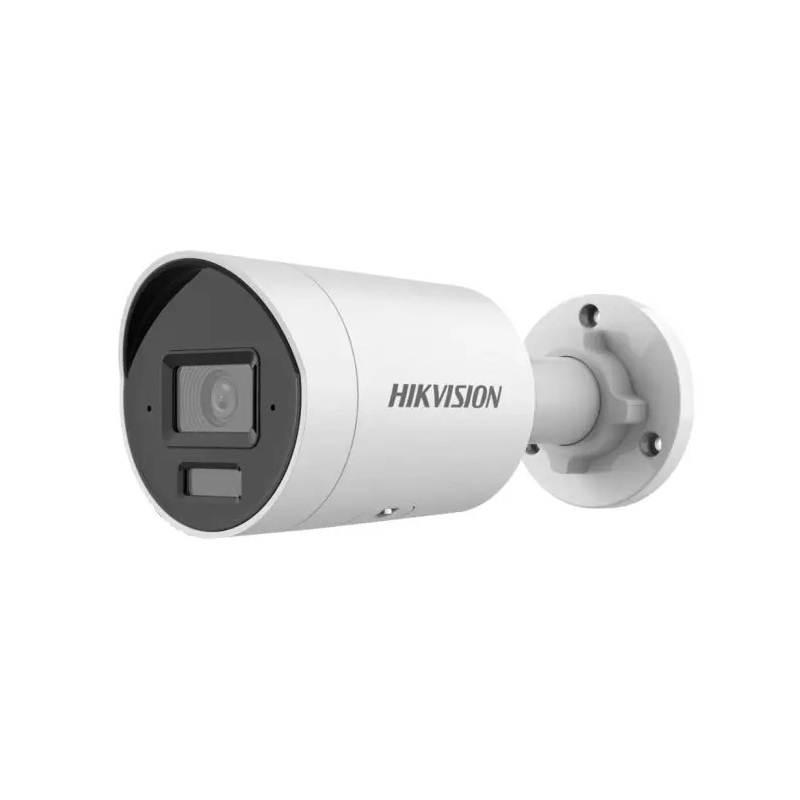

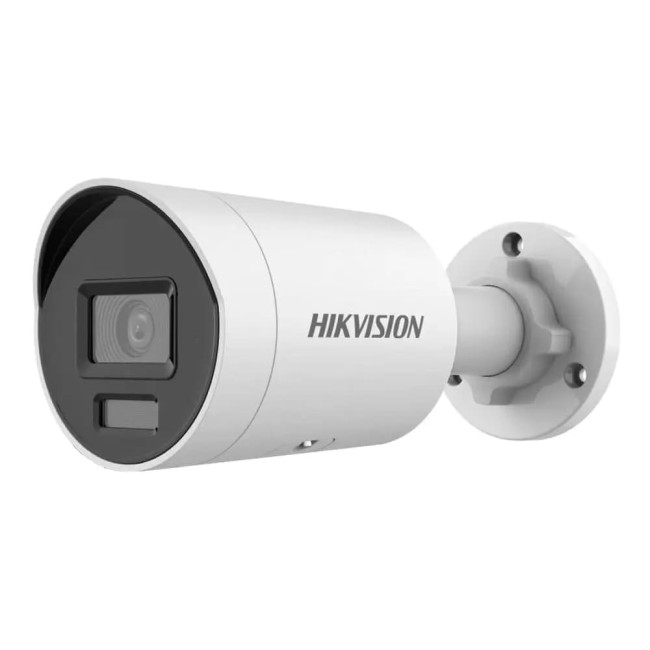

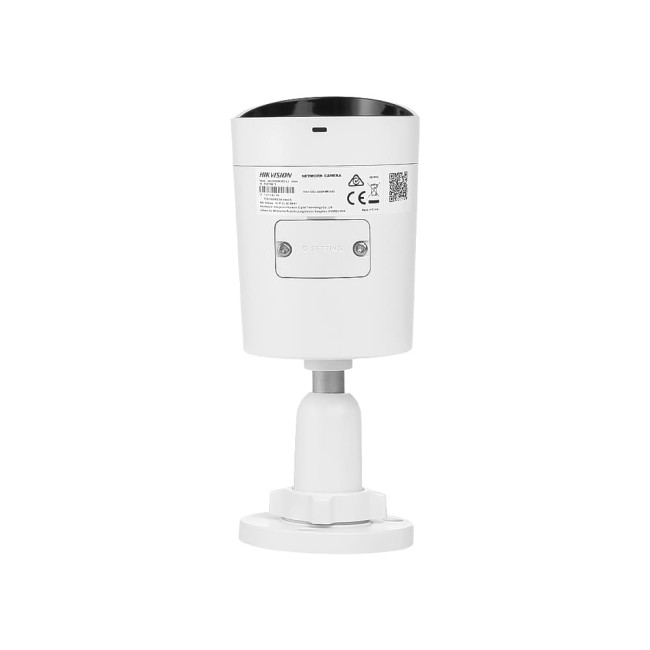

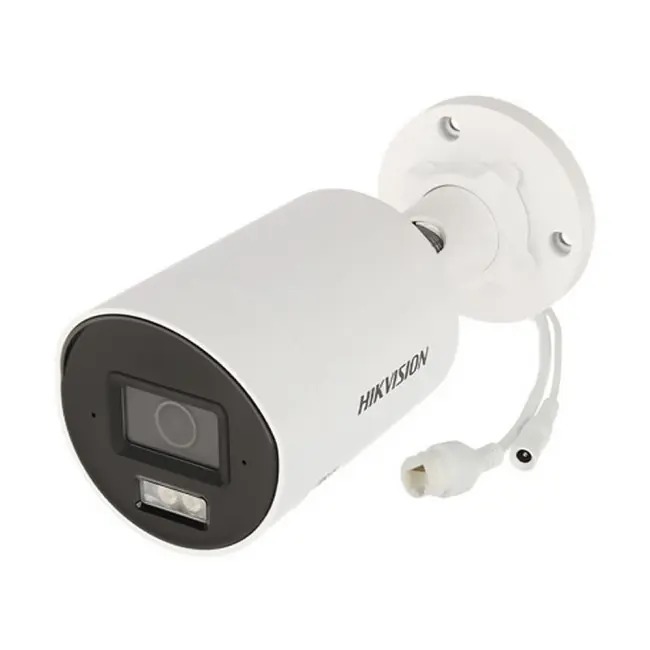

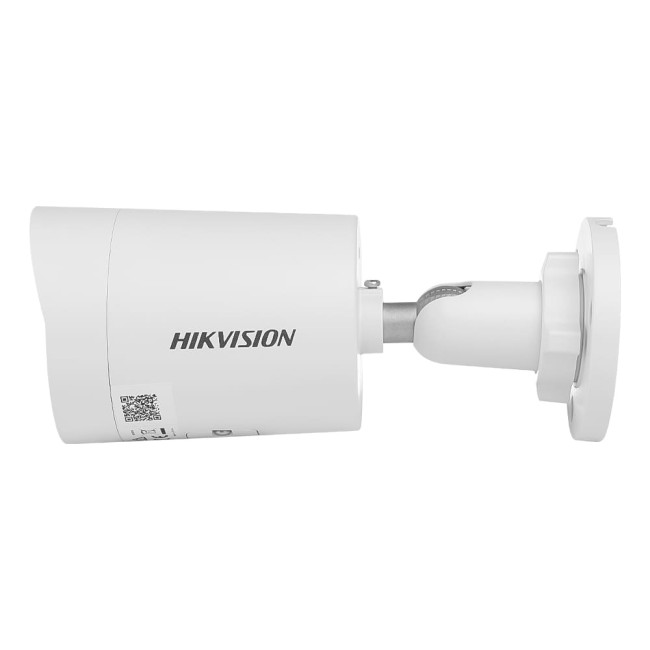

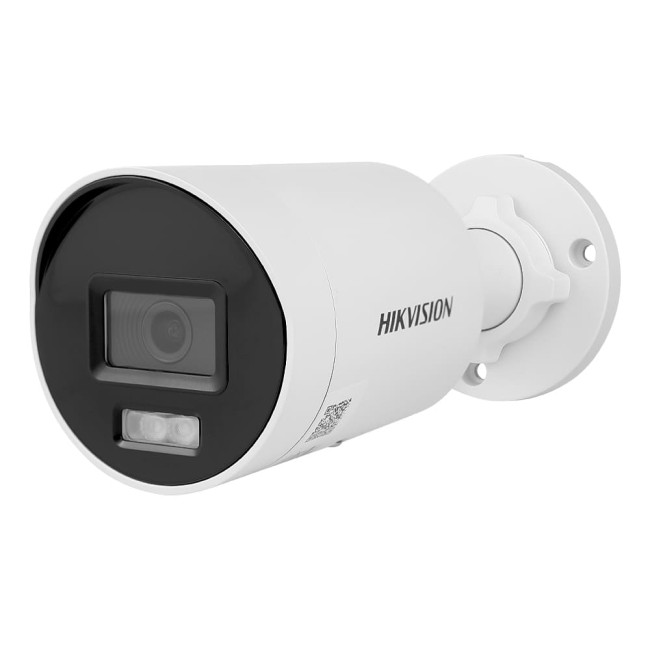

The body is all metal, 176 mm long and 74 mm in diameter, weighing 515 g — a classic bullet, and outdoors that shape has two practical advantages over a dome. First, its integral shield physically shades the lens from rain, snow and direct sun, so grime and water spots do not build up on the glass as fast as on a dome bubble; second, a bullet is clearly visible from a distance, so the camera acts as a deterrent before anything happens. IP67 protection and a -30 to +60 degrees Celsius range mean it can sit on an exposed facade with no extra enclosure and will boot normally after a winter power cut, unlike cheap models rated only from -10. The downside of the form factor is equally plain: a bullet on a bracket is easier to knock aside or turn by hand, so mounting it below two metres from the ground is a bad idea — three metres and up is the sensible range. The metal housing brings one more practical bonus: it conducts heat away from the sensor, which noticeably affects noise levels in summer sun.

Power, local archive and integration protocols

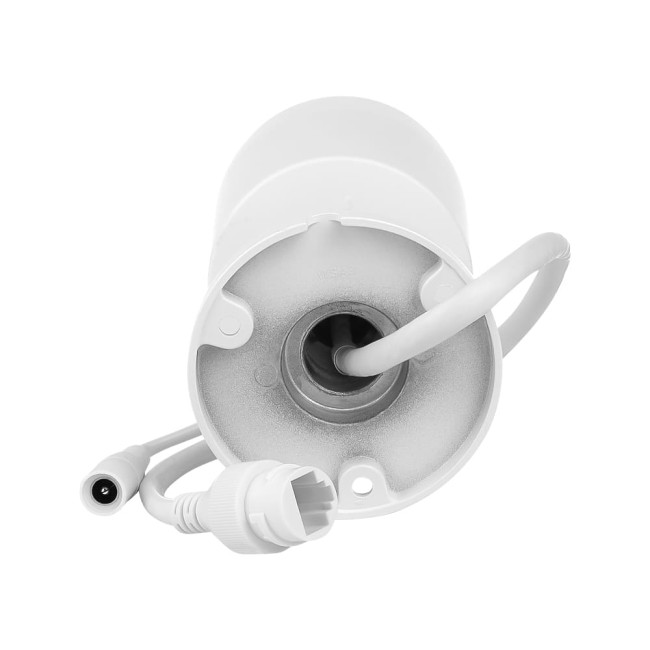

The camera runs on 12 V DC or PoE 802.3af, and consumption is only 7.5 W at roughly 0.6 A, which is among the lowest figures for a 6 MP camera carrying 40 metres of illumination. For system design that leaves headroom: eight of these draw about 60 W, so an eight-port switch with a 65 to 70 W PoE budget covers the whole set without an auxiliary power supply. The microSD slot takes cards up to 512 GB, and that archive is best used not instead of a recorder but as insurance: if the network drops, the camera keeps writing locally, and the missing fragment is still there once the link is back. The protocol set is broad — ONVIF profiles S and G, ISAPI, SDK, RTSP, plus ISUP, which lets the camera register itself with a monitoring platform without a public IP address or port forwarding; Home Assistant integration is declared as well, which matters for smart-home setups. Audio is listed as present for this item, but bear in mind that in this Hikvision line the built-in microphone corresponds to the 2U code in the model designation, so if sound recording is critical, check the marking on the box itself when ordering.

Where to install it and the jobs it was built for

This is an outdoor working tool for scenes of medium to large depth: a long fence, a driveway between buildings, an entrance gate, a shop facade, a car park of a few spaces, a warehouse yard or a depot perimeter. The 2.8 mm lens with its 105-degree angle gives the overall picture, so one camera sees the pedestrian gate, the vehicle gate and part of the street in front of them; a recognisable portrait comes out within roughly the first ten to twelve metres, while human movement is reliably registered across the whole illuminated distance. For an elongated plot the right scheme is two of these facing each other along the diagonal of the perimeter rather than one in a corner, so anyone walking along the fence is always in at least one frame and a turned back never hides the face. This optic is not meant for reading licence plates, even at 6 MP: at a gate, plates get a dedicated camera with a narrower lens, aimed at a shallow angle to the direction of travel. It will work indoors too, but there the 40-metre illumination is wasted and the bullet body looks bulky, so a dome is the more logical choice for a hall or a corridor.

How it differs from the neighbouring Hikvision models in this catalogue

Its direct senior relative is the 8 MP DS-2CD2083G2-LI: the same housing, the same 40 metres of light and the same power draw, with the sensor as the only difference. Paying up for 8 MP makes sense if you plan to work the digital zoom hard in the archive or to cover a wider sector with one unit; if dependable night footage is the priority, 6 MP on a 1/2.4-inch sensor often yields a cleaner night frame than 8 MP on a smaller chip, and it takes up less space on the recorder's drive. The DS-2CD2T83G2-4LI and DS-2CD2T43G2-4LI come in the larger T housing with 80 metres of illumination, and those are what you pick for a deep perimeter, a long approach drive or an open field in front of a building where 40 metres falls short, though they draw 11 to 12 W, which tells on the PoE budget. The DS-2CD2T47G3-LIY is the ColorVu option with 60 metres of reach: it delivers colour all night long, but at the cost of permanently lit white light, which is not always acceptable near windows or a neighbouring plot, whereas the hybrid scheme only lights up on an event. If you need a camera indoors or under a low ceiling, the domes DS-2CD2143G2-LIS2U and DS-2CD2343G2-LI2U in this catalogue make more sense, while the budget alternative for a simple scene is the Value line DS-2CD1143G2-LIUF, which has neither true WDR, nor 40 metres of light, nor a 24-month warranty.

Send us the plot dimensions and your intended mounting height, and we will calculate how many cameras your perimeter needs, the PoE budget to allow for on the switch and how many days of archive your recorder's drive will hold.
