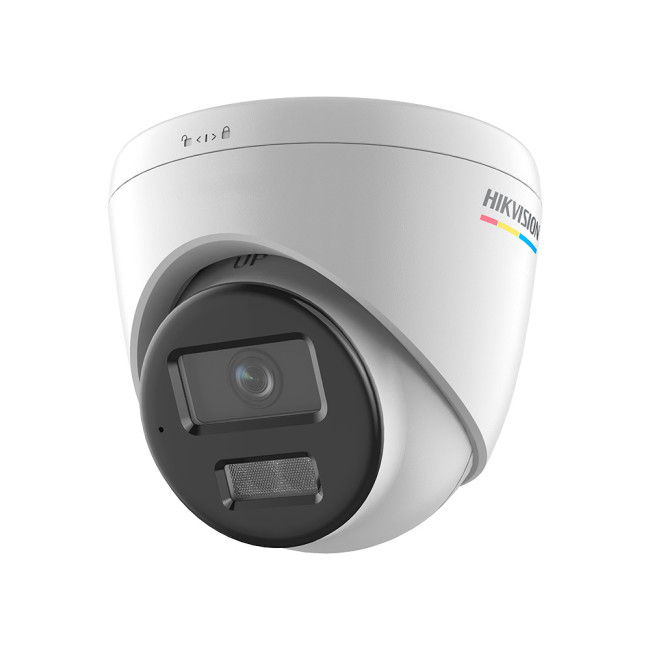

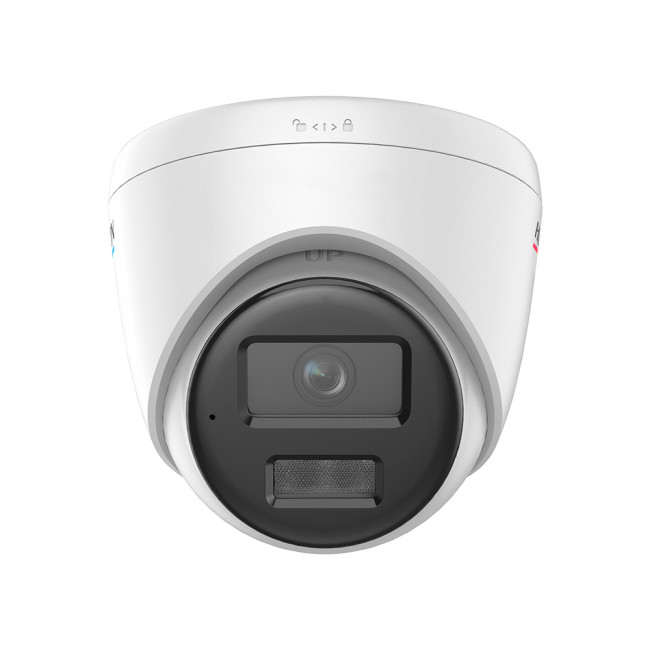

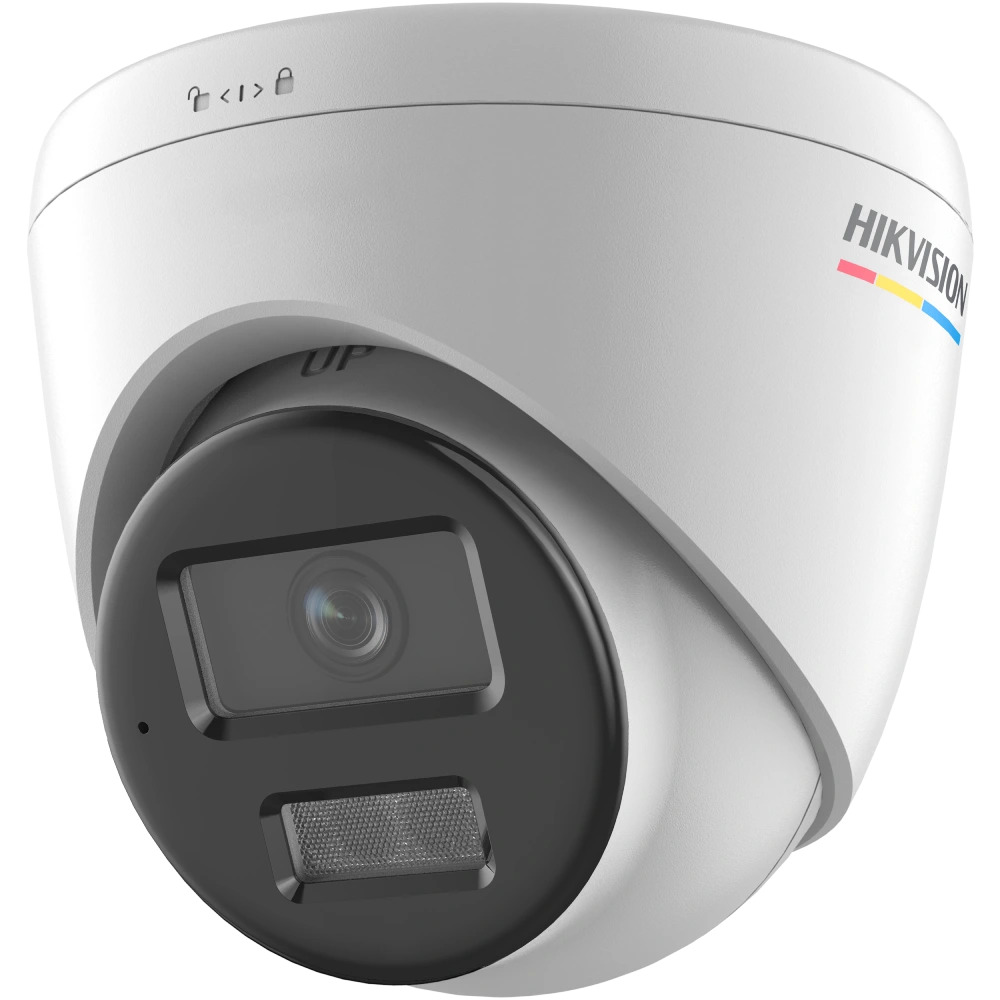

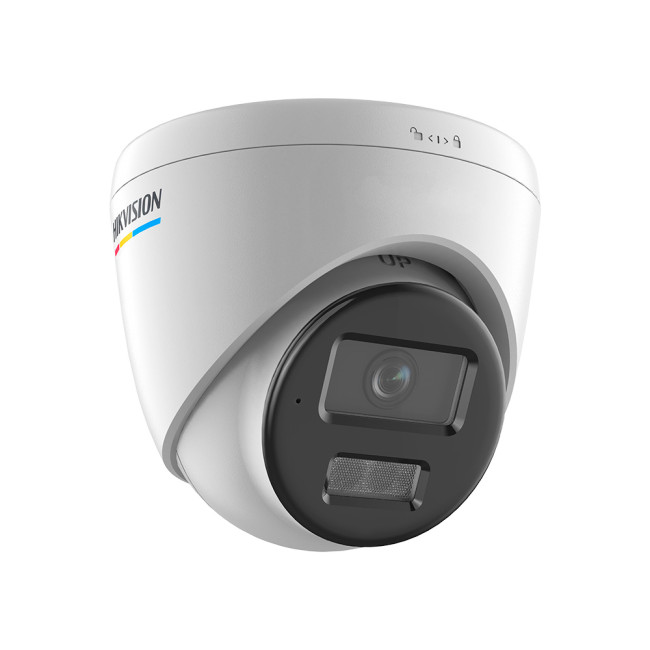

HIKVISION DS-2CD1347G3-LIUF (4 MP/2.8 MM) - DOME PoE IP CAMERA

G3 is a generation marker, not AcuSense — the one thing to understand before buying

In Hikvision naming the DS-2CD1xxx index marks the budget Value line, while the G3 letters denote the platform generation: a newer image processor, hybrid light control and the Motion Detection 3.0 engine. A newer generation is not the same thing as AcuSense, and the specification of this particular item lists motion detection only, with no classification of the target into person or vehicle. The practical consequence is simple: the camera reacts to any change inside the frame — a branch moving in the wind, a cloud shadow, a cat on the path, headlights through the fence slats — so the owner collects dozens of alerts per night. What happens next is predictable and repeats in most such installations: after a week the push notifications get switched off, and the camera stops being a security device and becomes a recorder that simply fills the archive in case something happens. Part of the problem is treated with settings — narrow detection zones covering only the gate and the walkway, a higher sensitivity threshold, a time schedule — and the rest is solved either by an NXI series recorder that runs the analytics on the channel itself, or by a camera that classifies targets on board. If alert filtering matters to you, do not try to squeeze it out of this model: the same catalogue holds nearly identical 4 MP domes that do detect people and vehicles.

Smart Hybrid Light: infrared and white LEDs in one housing, colour at night instead of a silhouette

The LIUF suffix stands for two things at once — Smart Hybrid Light illumination and a built-in microphone. The light works in three modes: infrared only (black and white night footage, with the camera giving nothing away), white light only (permanent colour video and a lit-up yard) and a smart mode where infrared stays as the baseline and white light is added on an event. The gap between a monochrome and a colour night frame is not cosmetic: on infrared you see a figure in a jacket, in colour you see that the jacket is blue and the car behind the fence is a dark red estate, and those are exactly the details that matter when the footage has to be shown to somebody. Effective illumination reaches up to 30 metres, which is fine for a yard, a porch, a stairwell landing or a shop floor, but clearly short for a long driveway or a 50-60 metre perimeter. One nuance belongs specifically to this model: with no target classification on board, the trigger for the white light comes from motion rather than from a recognised object type, so at night the lamp may fire for a cat or a branch — if your neighbours' windows or your own bedroom face the camera, it is wiser to keep the permanent infrared mode.

4 MP on a 1/2.8-inch sensor and a 101-degree angle: what is actually readable

A 1/2.8-inch sensor at 4 MP (2688x1520) and 25 frames per second is a noticeably larger chip than the 1/3-inch sensors common in this class, and a bigger sensor at the same pixel count means larger pixels, less noise at dusk and a cleaner picture under infrared. The 2.8 mm lens with its 101-degree field of view is wide: at a distance of five metres it takes in a strip roughly twelve metres across, so a single camera covers an entire porch with its walkway, a small yard or a shop floor without blind corners at the edges. Width is always paid for in pixel density, though: 2688 points spread over those twelve metres give around 220 pixels per metre close to the camera and already about 110 pixels per metre at ten metres. In plain terms, this optic supports confident face recognition up to roughly eight or nine metres, beyond which a face degrades into a person in a light jacket, and a number plate at fifteen to twenty metres will not be legible at all, no matter how far you push the digital zoom. The working conclusion: route the point where a person must pass closer to the camera — above the gate, above the door, above the till — and give the read-the-plates job to a separate camera with a narrower lens.

Where this camera belongs and the jobs it is wrong for

The 110 mm dome housing weighing 405 grams is designed for a ceiling or an eave: it draws less attention, has no long bracket that can be twisted by hand, and sits on a small mounting plate instead of catching the wind. Typical placements are the ceiling of a retail floor or a pharmacy, a stairwell landing, the porch of a private house, an office corridor, a canopy above a workshop entrance or a small company car park for a few vehicles. IP67 protection and a working range of -30 to +60 degrees Celsius allow year-round outdoor mounting, including a Ukrainian winter, where cheap cameras rated only to -10 simply refuse to boot after a power cut. There are three situations where this model is the wrong tool: a long perimeter or driveway that needs 60-80 metres of illumination, an entrance gate where the real task is number plates, and any spot where the camera can be knocked off with a stick or a stone, because the housing is plastic and no vandal-resistance rating is declared. For a gate group or a perimeter the same catalogue offers bullet models with long-range light, and the dome is better kept for doorways and indoor areas.

Storage: a 512 GB card, a recorder, ONVIF and Home Assistant

The camera records both to a recorder and to its own microSD card of up to 512 GB, and the H.265 and H.265+ codecs are roughly twice as economical as H.264 at the same quality. Translated into days, continuous 4 MP recording at an average stream of about 4 Mbit/s eats some 40-45 GB per twenty-four hours, so a 512 GB card holds roughly eleven to twelve days of round-the-clock archive, and several times more in event-only mode. The card is not supplied in the box and has to be bought separately, and it is worth choosing one rated for surveillance: an ordinary camera card under constant rewriting lives for months rather than years. For integration the camera declares ONVIF Profile S, Profile T and Profile G, plus ISAPI, SDK, RTSP and FTP, which means it sits correctly in a Hikvision recorder, in a third-party NVR and in a PC-based VMS, while Profile G adds standard access to the footage stored on the camera itself. One more useful detail for smart-home builders: Home Assistant integration is declared, so the stream and the events can be pulled into your own automations, and the built-in microphone adds audio — just remember that audio recording in public spaces is legally restricted, and in a shop or cafe it should either be disabled or announced with a notice.

PoE power, 7.3 W consumption and a 12-month warranty

The camera runs either from PoE 802.3af over the same cable that carries the video or from a separate 12 V supply, drawing 7.3 W at roughly 0.6 A. In system terms that matters: eight such cameras add up to about 58-60 W of useful load, so a switch with a 60 W total budget would be taken right at the limit, with no headroom for losses in long cable runs or for cold weather, which makes a 90-120 W switch the practical minimum. The 802.3af standard delivers up to 15.4 W per port, so at the individual port level the margin here is more than double and there will be no under-powering issues on ordinary twisted pair up to a hundred metres. The 12 V option only makes sense where mains power already exists locally and there is nowhere to pull a new line: PoE is more convenient because a single UPS on the switch protects every camera instead of one unit per camera. One thing to weigh before buying: the warranty on this item is 12 months, while the neighbouring 4 MP domes in this catalogue are listed with 24, and when a camera goes somewhere awkward to dismount that extra year sometimes matters more than the specifications.

How it differs from the neighbouring Hikvision models in this catalogue

Its closest relative here is the DS-2CD1143G2-LIUF [1650]: the same 4 MP dome format with hybrid light and the same wide angle of about 98 degrees, but with people and vehicle detection in its specification and a 24-month warranty, while its sensor is smaller at 1/3 inch against 1/2.8 — so choosing between them means choosing between a cleaner picture at dusk and proper alert filtering. The DS-2CD1143G2-LIUF Smart Hybrid Light [1655] is that same camera with a 4 mm lens and a 75-degree angle: narrower, but reaching further in detail, and it is the one to take when a specific passage rather than a general view has to be covered. If colour at night is not a requirement and monochrome infrared is enough, look at the DS-2CD1141G0-I [1647] — a simpler 4 MP dome with no white light, no microphone and no analytics, a noticeably more affordable option for a stairwell or a corridor. For a perimeter, a driveway or a gate this model is weak by design, and the right pick there is the bullet DS-2CD2T47G3-LIY ColorVu [1651] with 60 metres of light or the DS-2CD1047G3H-LIUF [1654] on a large 1/1.8-inch sensor. And if all you need is cheap video on a few indoor points and alerts do not interest you at all, the 2 MP DS-2CD1123G2-LIUF [1641] closes that job for less.

Tell us the mounting height, the distance you need to cover and whether a recorder is already in place, and we will advise whether this model is enough or whether the version with people and vehicle detection suits you better.
