HIKVISION DS-2CD1143G2-LIUF SMART HYBRID LIGHT (4 MP/4 MM) - PoE IP CAMERA

Smart Hybrid Light: colour footage at night instead of a grey silhouette

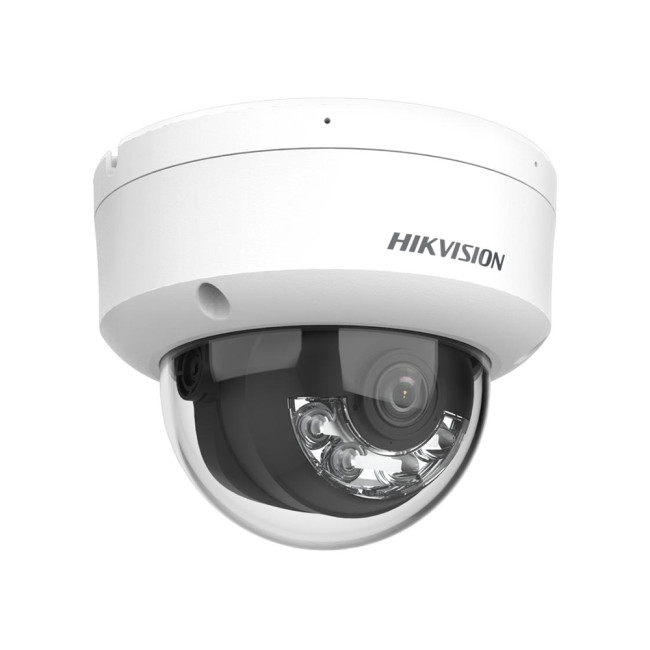

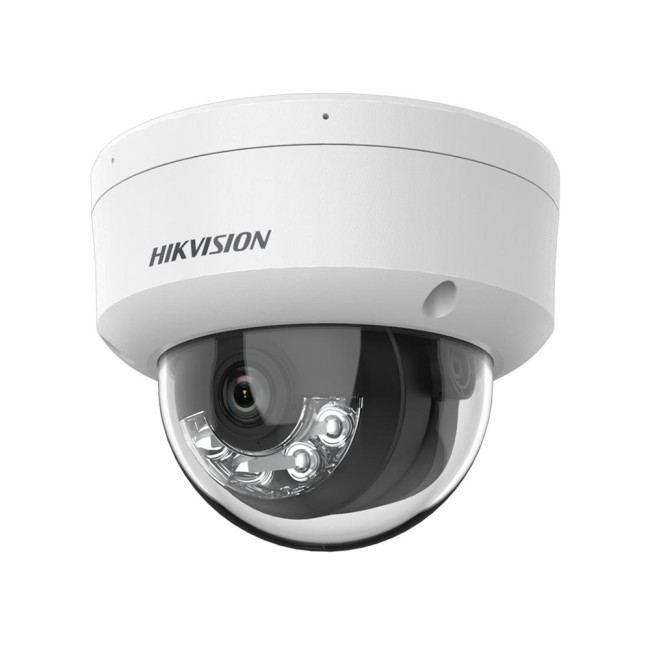

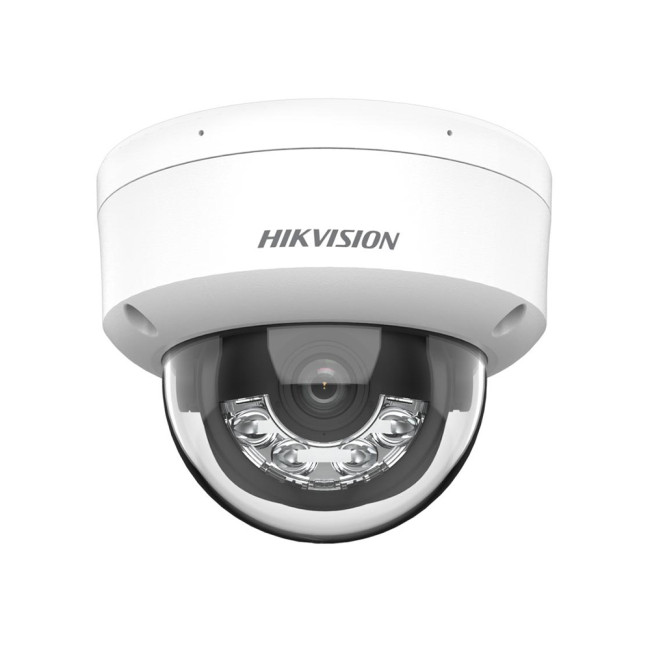

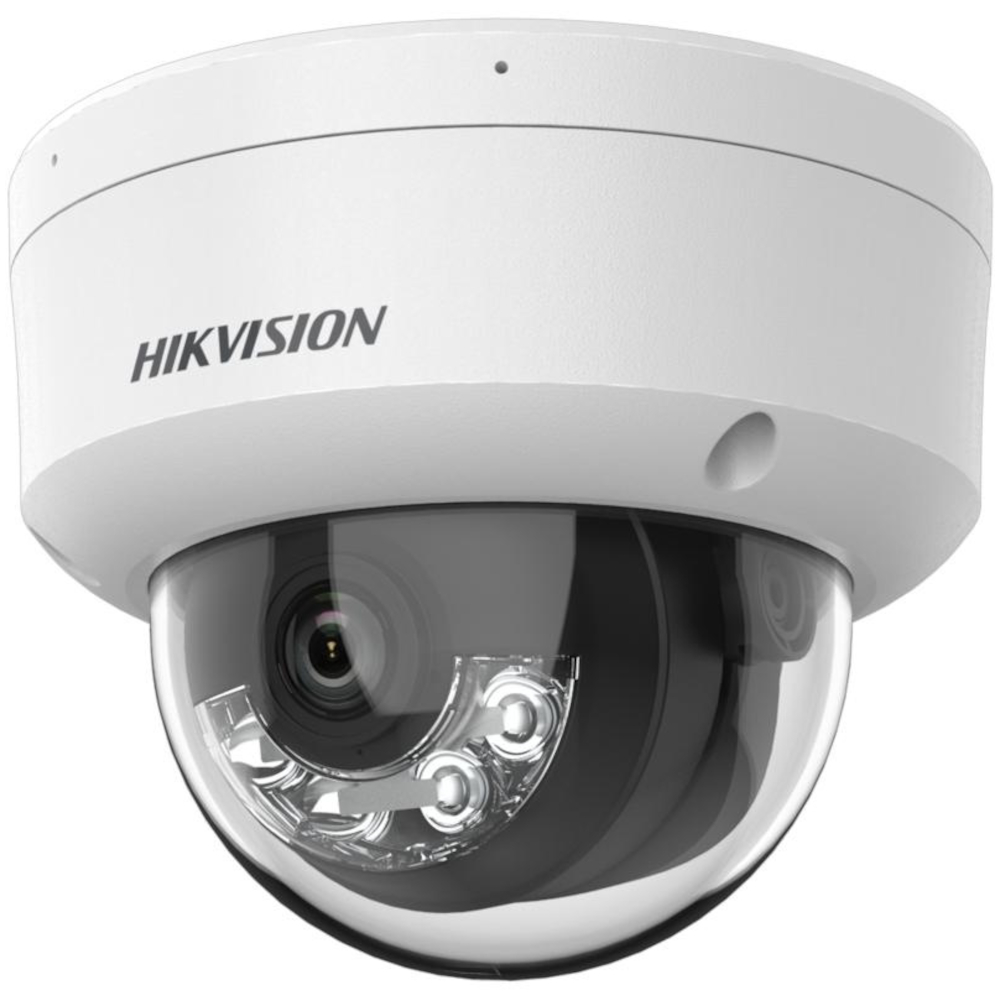

The Smart Hybrid Light badge means this dome carries two illuminators at once — 850 nm infrared LEDs and a white spotlight — and decides on its own which of them to use. During ordinary night operation the invisible IR array does the work and the recording stays monochrome; the moment the on-board analytics classify movement as a person or a vehicle, the white light fires and the frame turns full colour. That difference decides cases rather than just looking nicer: a monochrome clip proves that somebody was there, while a colour clip gives the jacket colour, the car colour and the body style — exactly the attributes police and insurers work with. There is also a deterrent effect that owners often rate first: a sudden burst of bright light tells the visitor plainly that he has been seen, and a fair share of attempts on a house or a parked car end right there. The honest limit belongs in the same paragraph: both the IR and the white light reach roughly 30 metres, so planning this camera to cover the far corner of a large plot is a mistake — beyond the lit zone it only sees whatever other light sources happen to illuminate.

4 MP on a 4 mm lens: what the frame actually shows

The 1/3-inch sensor records 2560×1440, roughly twice the pixel count of the two-megapixel cameras still common on small sites, and that reserve matters precisely when you have to zoom into saved footage to read a face or a label. The 4 mm lens gives a field of view of about 75°, which is a deliberately different optic from the usual 2.8 mm with its roughly 98°: the frame is narrower, but every object inside it is rendered larger, so detail at the same distance is noticeably better. In practice this means that at 10 to 15 metres the camera shows the features of a person walking toward it, where the wide-angle version at the same spot would only deliver a general view of the passage. Manufacturer figures for the 4 mm variant put detection at roughly 78 m, observation at 31 m, recognition at 15 m and identification of a specific individual at about 7 m, and those numbers are worth laying over the site plan before a single bracket is drilled. The trade-off deserves to be said plainly: a narrow angle leaves blind sectors to the sides, so one unit will not cover a whole yard — its job is to own one direction properly.

G2-generation AcuSense: fewer false alerts, and where it still slips

This is a G2 camera, and in Hikvision's naming that letter-and-digit pair stands for AcuSense — analytics that run inside the camera and classify a person separately from a vehicle instead of merely reporting that pixels changed. The whole value sits in filtering: a camera without classification pings you for a branch in the wind, for raindrops crossing the IR beam and for the neighbour's cat, after a week the owner silences notifications, and from that point the installation has stopped being a security system at all. Here an alert arrives only when a human or a vehicle enters the zone, and the same classification result also drives the white light, so the spotlight does not flash all night at moving foliage and does not annoy the neighbours. The model's limit should be stated as clearly as its strength: it has no animal detection, so a large dog in the yard can be scored as a person and raise a false alarm — with a pet on site, mount the camera higher and draw the detection zone tightly. The analytics are also rule-based, built on line crossing and intrusion into an area rather than on facial recognition; for that you need the Pro series or a recorder that supports it.

Dome housing, IP67 and real winter operation

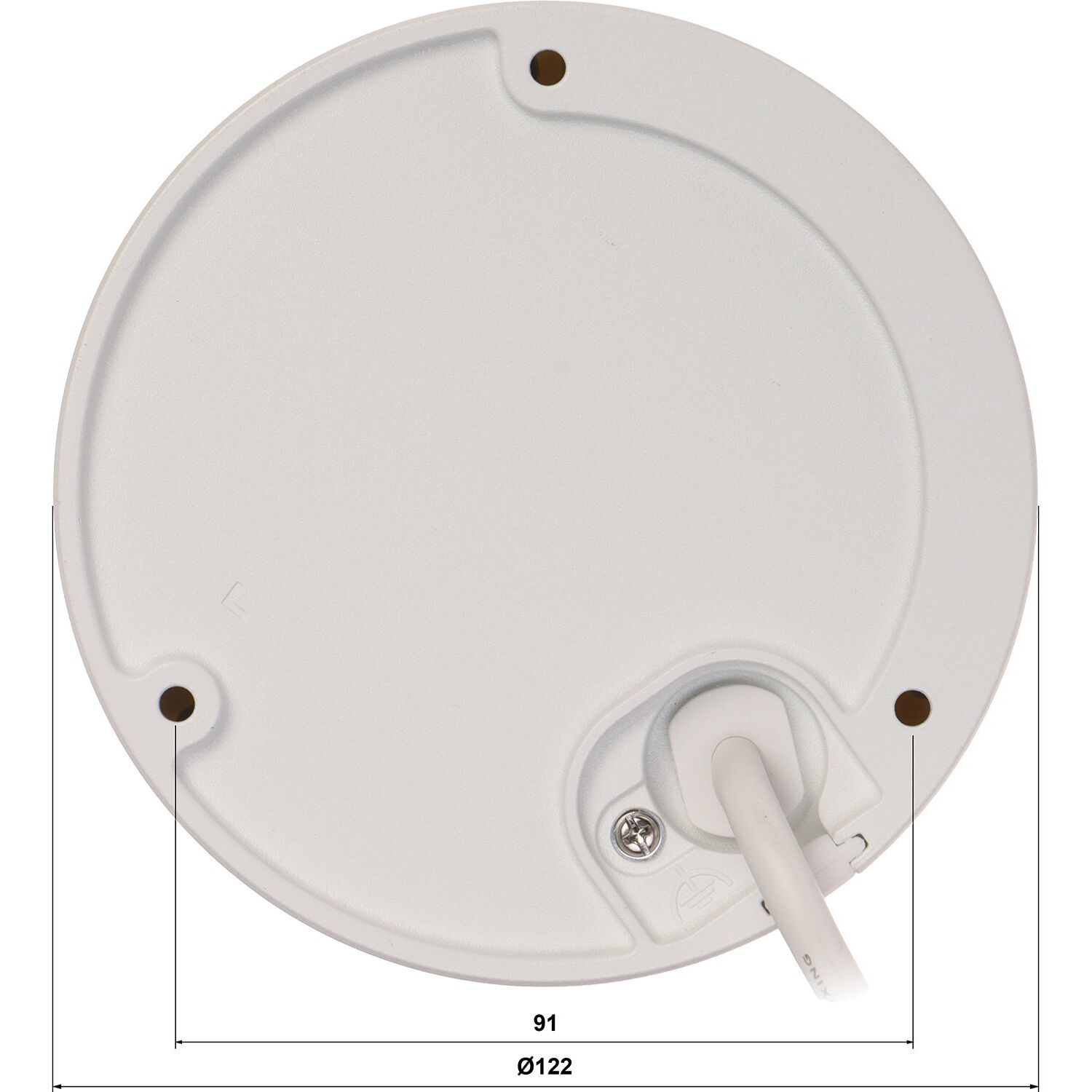

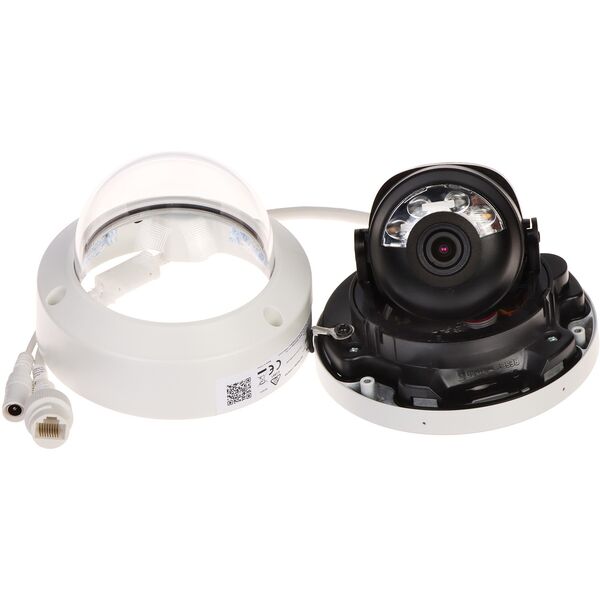

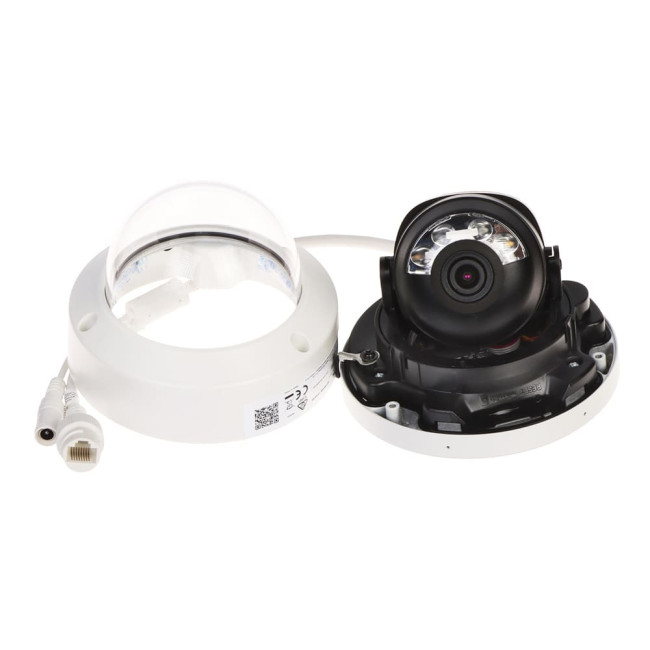

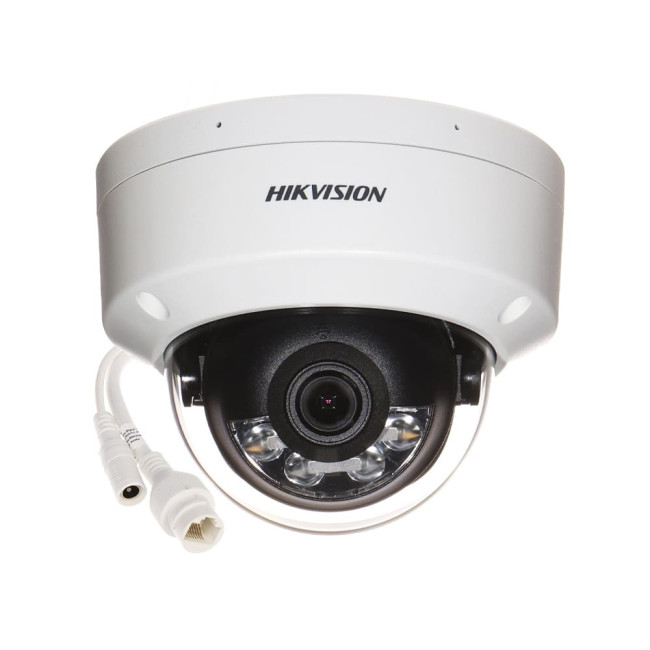

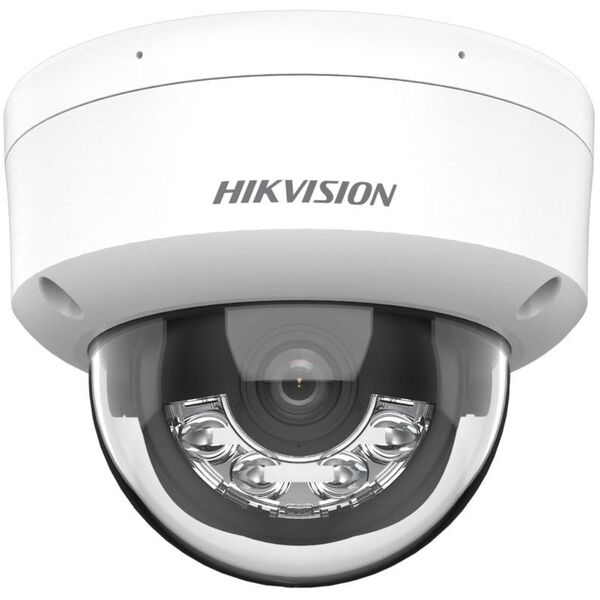

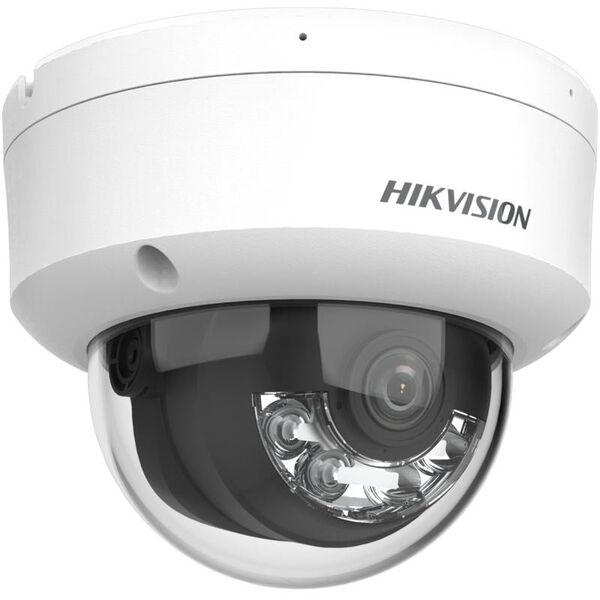

The housing is 121 mm across, 98 mm tall and weighs 550 g, so a standard ceiling or wall mount holds it without reinforcement, and the dome shape leaves almost nothing to grab — unlike a bullet camera sitting on a long arm, which an intruder can simply twist aside. IP67 covers full dust protection plus short immersion in water, which means the unit can live on an open façade with no soffit above it; that is a step above the common IP65 and the step genuinely matters where rain arrives at an angle with the wind. The declared range of -30 to +60 °C is the figure to look at for our winters: cameras rated only to -10 °C either fail to boot after a January power cut or drift out of focus as the optics deform in the cold. The metal-and-plastic body is white, which disappears on light plaster but stands out against dark brick or a timber soffit, so if discretion is part of the brief, choose the mounting point with that in mind. One maintenance detail is specific to domes: dust and cobwebs settle on the clear bubble, the illuminators shine straight through it, and any film on that surface turns into a glare haze at night — budget for wiping it a few times a year.

PoE power, a microphone, a 512 GB card and recorder compatibility

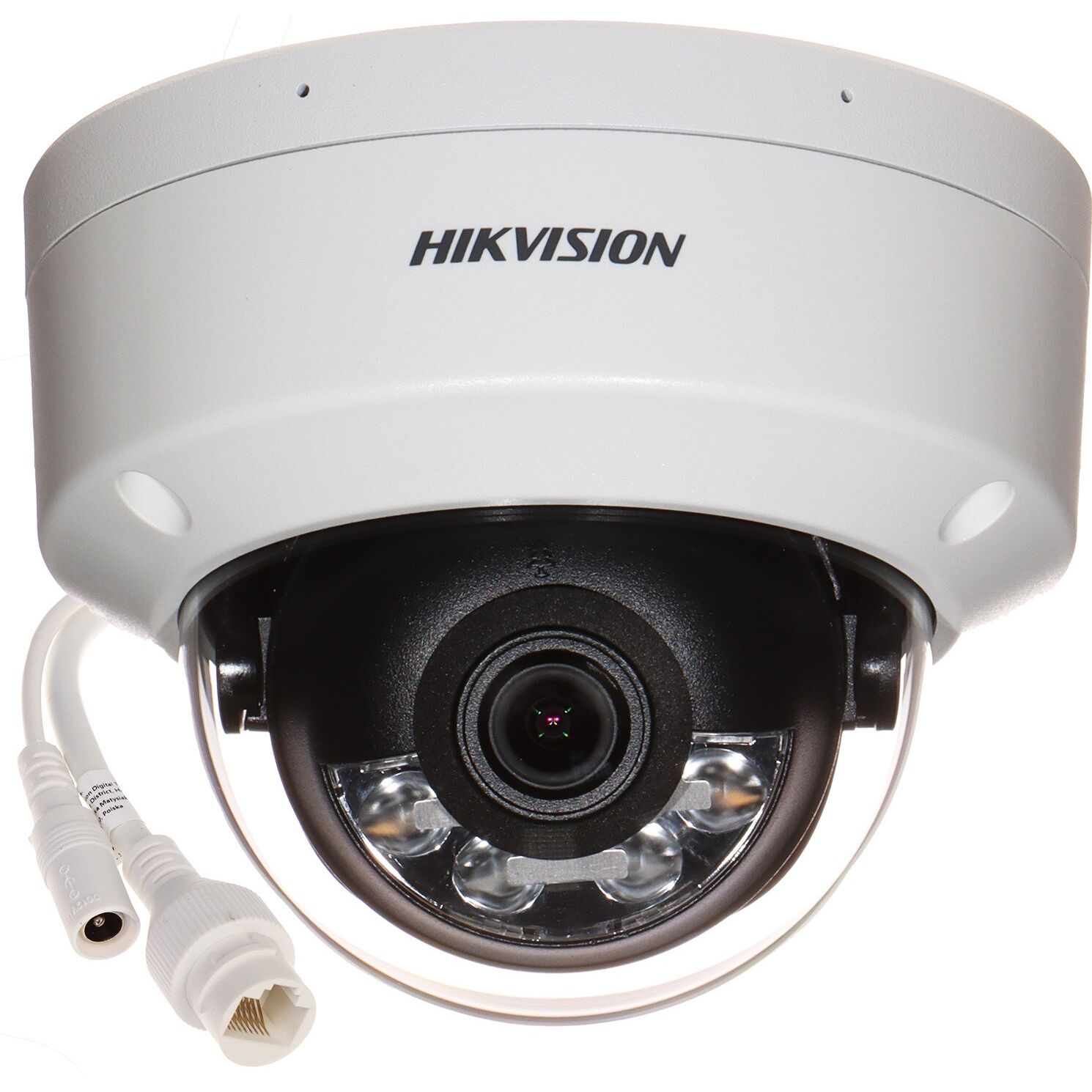

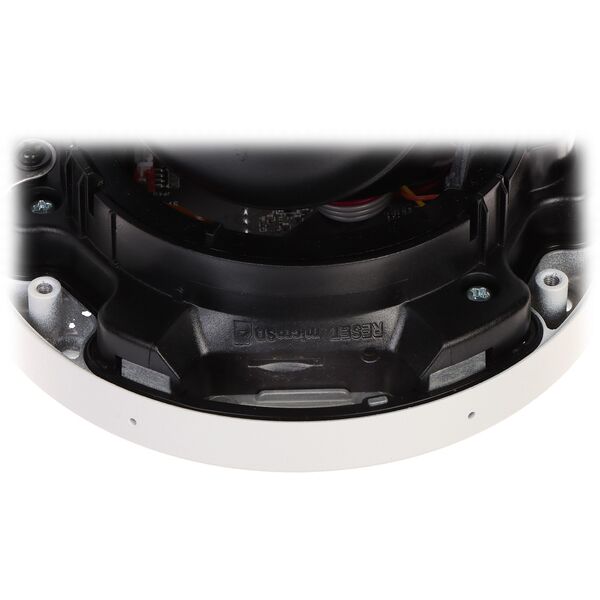

Power arrives either as 12 V from a separate supply or over the data cable through PoE 802.3af, and the 7.5 W draw keeps the arithmetic simple: eight of these cameras come to roughly 60 W, which already crowds a cheap eight-port switch with a 60-65 W budget, so size the switch with headroom. The built-in microphone adds an audio track, and that matters more often than buyers expect: a sentence spoken at the door or the sound of breaking glass lands on the recording even when the event itself is poorly framed — bearing in mind that audio capture in public areas carries legal restrictions worth checking for your situation. The microSD slot takes cards up to 512 GB, which buys several days of 4 MP footage held locally — insurance for the night somebody unplugs the recorder or cuts the cable. For integration the camera speaks ONVIF profiles S and T plus ISAPI, SDK and RTSP, so it joins a Hikvision recorder natively and a third-party NVR or VMS through ONVIF, with the usual caveat that some analytics settings stay behind in the vendor's own interface. Connectivity is RJ-45 only: there is no Wi-Fi here, so a cable run to the mounting point is non-negotiable.

Where this camera belongs and what it was built for

The profile of this model is a specific point of passage rather than a general overview: a front door, an entrance hall, a garden gate, a garage door, an office corridor, a till area, a narrow aisle between warehouse racks. In places like those the 75° angle works for you — a person enters the frame large, the face reads without digital zoom, and 30 metres of illumination comfortably covers the whole lit stretch of the approach. It also suits a shop floor or a production area when it is aimed at one defined spot — the till, the stockroom door, the goods handover counter — instead of being asked to blanket the entire room. Where it is out of place: a large yard, a long fence line, a car park for several vehicles and any brief that reads see everything with one device; those call for the 2.8 mm version or for two cameras facing each other along the axis. Nor should it be bought to read number plates on moving cars: beyond about 15 metres a 4 mm lens will not resolve a plate, that task needs a longer focal length, and it should be planned as its own line in the project.

How it differs from the neighbouring models in this catalogue

Its closest relative sits in this very catalogue: the DS-2CD1143G2-LIUF with the 2.8 mm lens — same sensor, same hybrid illumination, same housing, with the whole difference in the optics and the resulting angle, about 98° against 75°. Choosing between them is choosing a task rather than a tier: take 2.8 mm to survey a yard or a room, take 4 mm for a doorway where the face has to be usable. If analytics are not part of your plan and the recording itself is enough, the catalogue also holds the DS-2CD1141G0-I and DS-2CD1341G0-I — the same 4 MP in a cheaper G0 generation, but with no AcuSense and no white light, which means monochrome nights and an alert for every kind of movement. The DS-2CD1047G3H-LIUF at 4 mm is effectively the same package in a bullet body: more visible from a distance, which deters on its own, yet also easier to knock out of alignment. And if you need physical alarm inputs, an external microphone connection and a wider rule set, look at the Pro line in the same catalogue — the DS-2CD2143G2-LIS2U or the DS-2CD2347G2H-LIU with its 40-metre reach; what you pay extra for there is integration with alarm peripherals, which a private house rarely uses.

If you are unsure which focal length your particular spot needs, send us the distance from the mounting point to the area you want covered and what exactly has to be identifiable — we will tell you whether 2.8 or 4 mm is the right call and how many cameras the site actually warrants.
