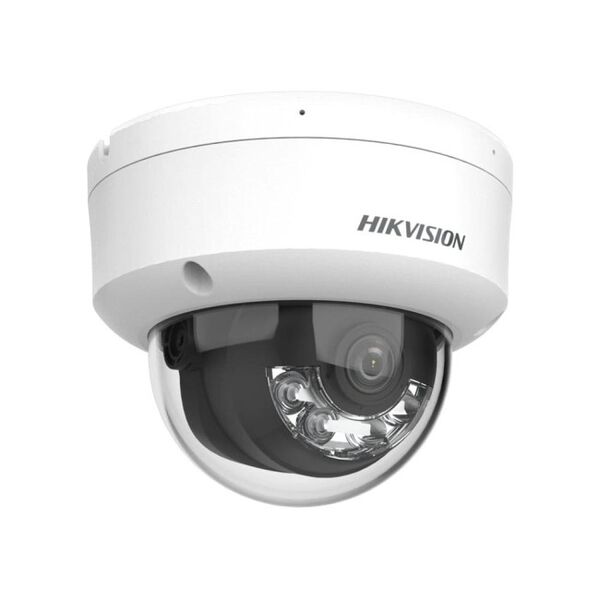

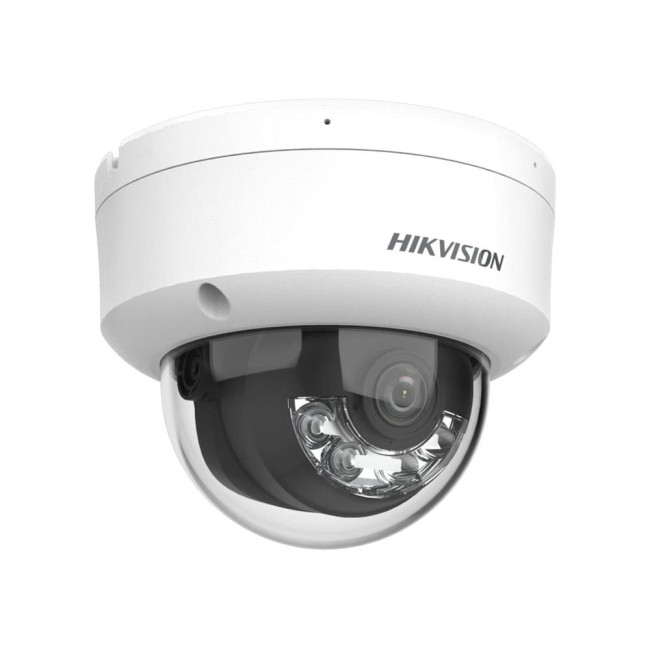

HIKVISION DS-2CD1123G2-LIUF (2 MP/2.8 MM) - DOME PoE IP CAMERA

Smart Hybrid Light: why the night picture stays in colour

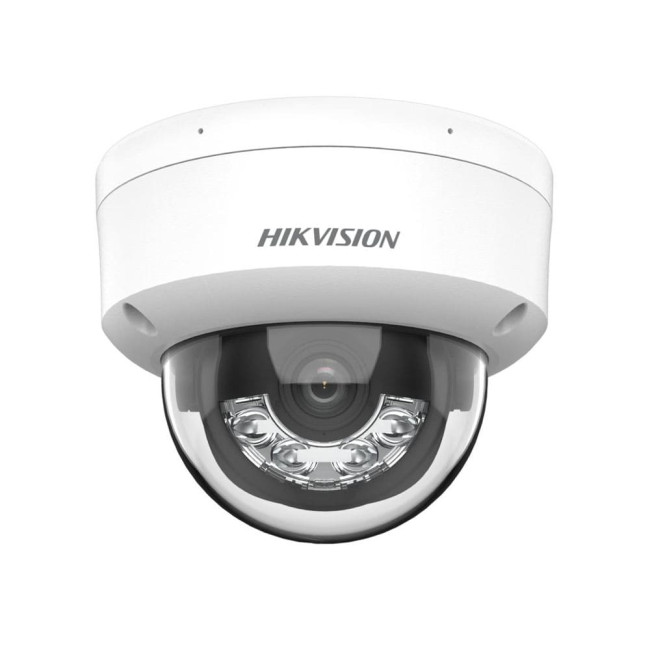

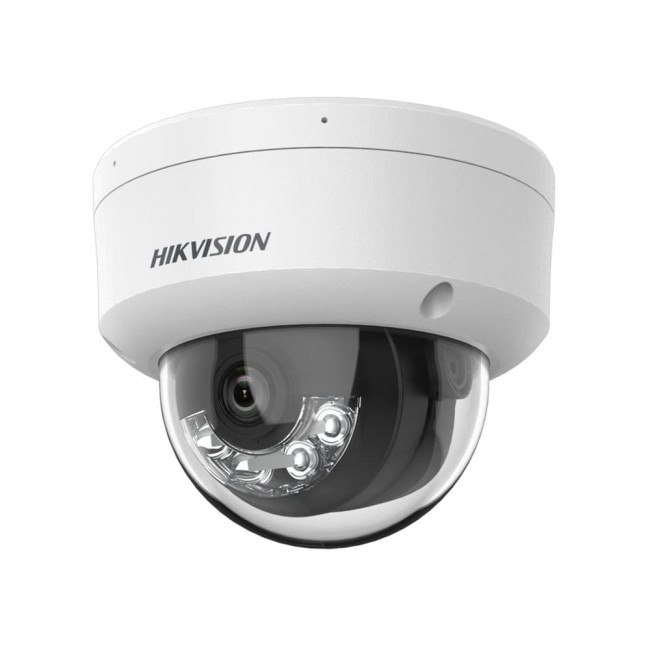

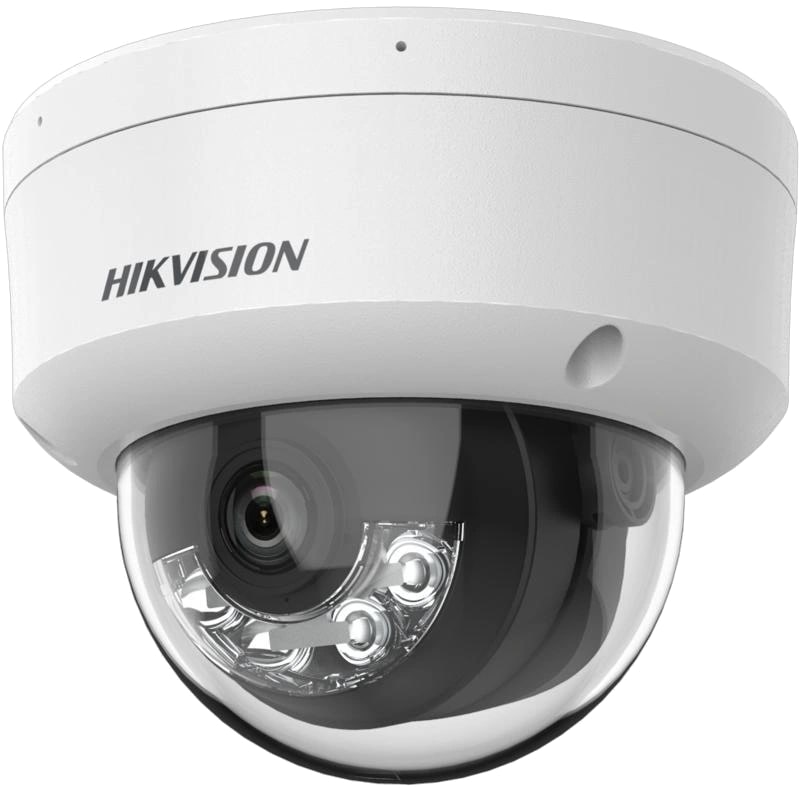

The LIU index in the model name stands for two separate light sources built into one housing, infrared LEDs and white LEDs, with the camera itself deciding which of them to use. In the normal night mode the discreet 850 nm infrared illumination works at an effective range of up to 30 metres and the recording stays black and white, giving away nothing about the presence of surveillance. The moment the on-board analytics classifies a human or a vehicle in the frame, the white light switches on and the image turns full colour, so instead of a dark silhouette you get footage showing that the jacket was blue and the shoulder bag red. That difference becomes decisive when the recording has to be handed to the police or an insurer, because a witness describes the colour of the clothes and of the car, and a monochrome frame cannot confirm such a description. There is a side effect that often turns out to be the main one: a sudden burst of white light tells an unwanted visitor directly that he has been seen, and a fair share of attempts to enter a yard ends exactly at that point.

Two megapixels and a 103° angle: what you actually get in frame

A 1/2.9" sensor with 1920×1080 resolution paired with a 2.8 mm F1.6 lens produces a 103° horizontal and 56° vertical field of view, which is enough for one camera to cover a typical house yard or a small retail floor in its entirety. The official DORI figures for this optic are 45 metres for detection, 18 metres for observation, 9 metres for recognition and 4 metres for confident identification of a face, and these are not marketing numbers but the limits beyond which there are physically too few pixels on the target. In practice it reads like this: movement along the fence forty metres away will be seen and recorded, yet a person is only identifiable once they come within four or five metres, so the gate, the porch or the till belongs in the near zone of the frame rather than in the far corner. The 25 frames per second rate lets you step through the footage frame by frame without smearing when someone walks past quickly or a car pulls into the yard. One compromise of a two-megapixel sensor is worth knowing in advance: digital zoom into a fragment quickly runs into graininess, so if reading number plates is part of the job, a four-megapixel model from this same catalogue is the more sensible purchase.

AcuSense of the G2 generation: what it filters out and what it cannot do

The G2 marking is not a revision number but the presence of human and vehicle recognition inside the camera itself, meaning the object is classified before the event ever becomes a notification. The value lies not in the detection as such but in discarding false alarms: a branch in the wind, a cloud shadow, a cat on the fence or raindrops caught in the infrared beam no longer raise an alert, because none of them is a person or a car. The difference from the G0 generation sold in this same catalogue, such as the DS-2CD1321G0-I, becomes obvious within the first week: there the camera reacts to any pixel change, dozens of night notifications quickly become tiresome, the owner turns them off, and the system stops performing any security function at all. Here the classification also drives the white light, so the floodlight fires at a person rather than at every rustling leaf, and the neighbours are spared a nightly light show. The honest limitation of the 1xxx line is that its analytics works as motion detection with an object-type filter, while full line-crossing and intrusion rules of the 2xxx Pro series are absent, so if you specifically need a virtual line along the fence, look at the senior range.

An IP67 housing with IK08 impact rating and work in hard frost

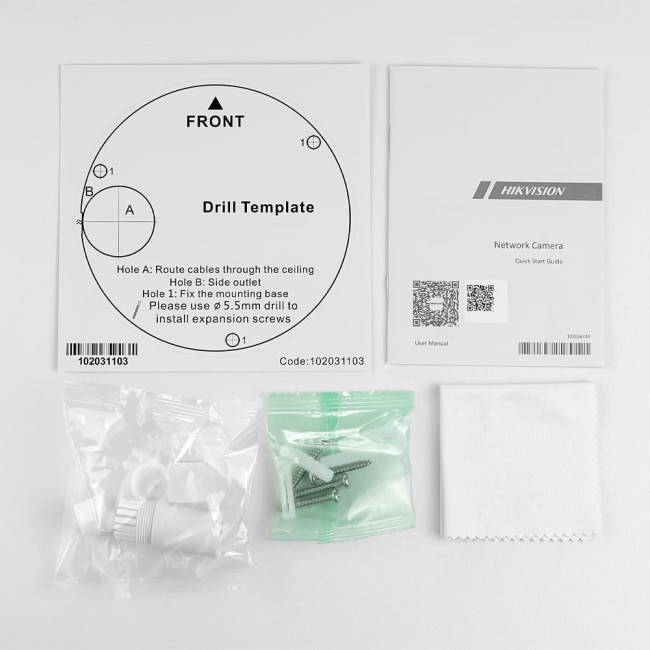

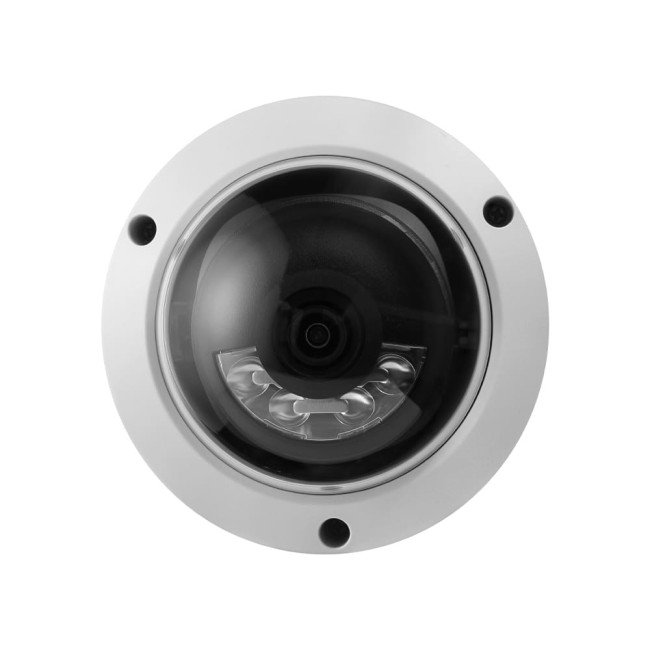

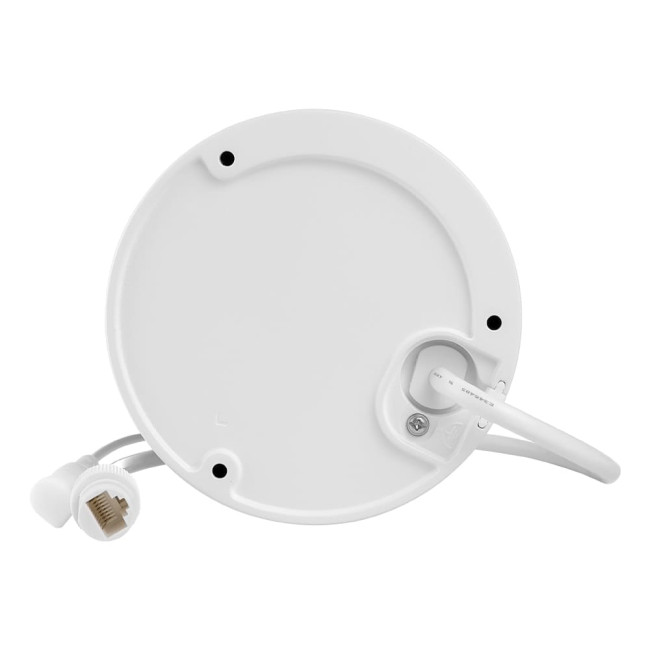

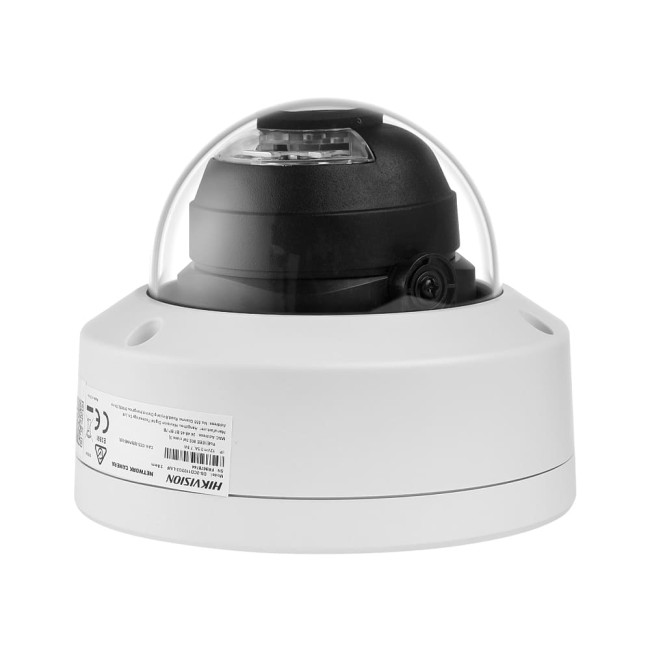

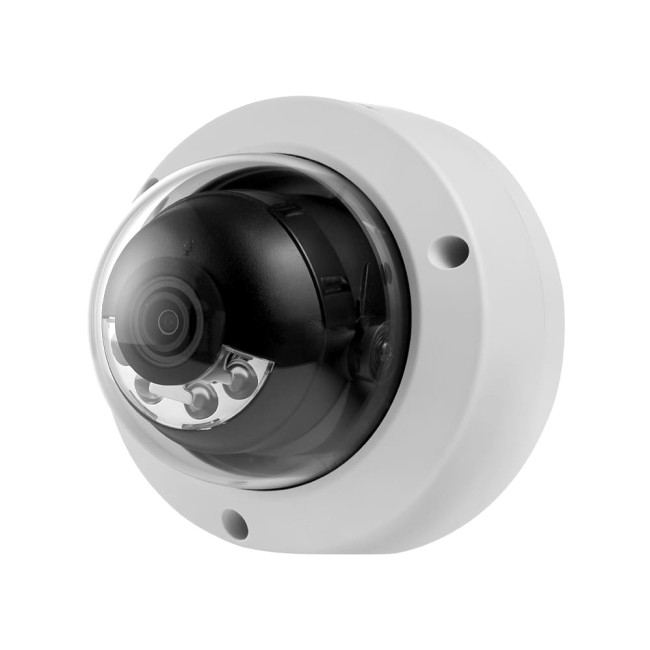

The metal and plastic dome measures 121.4 mm across and 97.7 mm in height and weighs 550 grams, so the standard base is enough for mounting without reinforcing the ceiling or buying a special bracket. The IP67 rating means complete dust tightness and survival of short immersion in water, which allows the camera to sit on an open facade rather than hide under an eave, and it is a noticeably higher grade than the IP65 common in the budget segment. The IK08 impact rating matters more on dome cameras than it first seems, because it is the transparent bubble that takes the hit from a stick or a stone, and cheap models without that rating turn into a blurred smear after a single such episode. The operating range from -30 to +60 °C is built for a Ukrainian winter, whereas cameras rated only down to -10 °C may simply refuse to start after a January blackout. Three-axis adjustment after installation, with 0-355° pan, 0-75° tilt and 0-355° image rotation, lets you aim the lens at the exact sector you need and level the horizon even when the camera sits on a sloping surface.

PoE power, networking and a local archive on the memory card

The camera runs either from 12 V DC drawing up to 6 W or over PoE 802.3af class 3 with a maximum of 7.5 W, so a single twisted pair carries both power and data and no separate socket is needed next to the camera. For planning this is a convenient figure: eight such cameras together draw around sixty watts, so a typical eight-port switch with a 60-65 W budget is only just sufficient, while a 90-120 W model is chosen to avoid replacing the switch when a ninth camera or a more power-hungry floodlight unit appears. The letter F in the name stands for a microSD slot for cards up to 512 GB together with a reset button, and that card holds a local archive should the cable to the recorder be cut, which in H.265+ covers weeks of event-based recording. Support for ONVIF profiles S and T, with profile G added in the -F version, alongside ISAPI, SDK and RTSP, means the camera fits not only a Hikvision recorder but also a third-party NVR or an open video management system. The built-in microphone records audio in sync with the video, but there is no speaker in this housing, so you cannot talk back to someone in the yard through it and would need a model with two-way audio for that.

Where to install this camera and which tasks suit it

The dome shape with its wide 103° angle shows its strength where a single device has to cover an area as a whole rather than stare at one point: a house yard, the apron in front of a garage, a small sales floor, a checkout zone, an office reception or the entrance hall of an apartment block. For stairwells and corridors the model has one more argument in the IK08 rating, because in communal spaces cameras are far more often destroyed physically than bypassed technically. On a sales floor two megapixels are enough to follow a customer between the shelves and keep an eye on the till area, but for evidential footage of the moment money changes hands the lens should be placed directly above the counter, within those first four metres. What this model should not be asked to do is guard a vehicle entrance with plate reading, since a wide 2.8 mm lens at that distance delivers a general view and not details, which is why entrances get a separate camera with narrower optics. Nor should it be treated as the only camera on an elongated plot, because a long fence or driveway is covered by two cameras facing each other, otherwise half of the perimeter stays outside the frame.

How it differs from neighbouring Hikvision models in this catalogue

The closest relative here is the DS-2CD1323G2-LIUF with the same two-megapixel sensor, the same 30-metre hybrid illumination and the same G2 analytics, but in an eye-ball turret body that is easier to aim at a sharp angle, while the dome of this model is better protected against physical interference. If security analytics is not needed at all and the camera is only meant to record the fact of an event, the catalogue offers the far more affordable DS-2CD1321G0-I and DS-2CD1121-I, which belong to the G0 generation without human recognition and without white light, meaning a monochrome night and alerts on any movement. The step up to four megapixels within the same line is the DS-2CD1143G2-LIUF, identical in shape and illumination but with twice as many pixels on the target, which directly extends the distance of confident identification. If what you really need is line-crossing and intrusion rules, true 120 dB WDR for shooting against the sun and a detection range of around 67 metres, the choice moves to the Pro series DS-2CD2343G2-LI2U from this same catalogue. In short, this model is the rational minimum wherever colour night vision, false alarm filtering and an impact-resistant dome are required, and where the budget is better spent on the number of viewpoints than on megapixels in a single one.

If you are unsure how many cameras and which optics your site needs, describe the layout to us, the perimeter length, the number of entrances and whether a recorder is already in place, and we will prepare a placement plan showing what each point will actually see.
