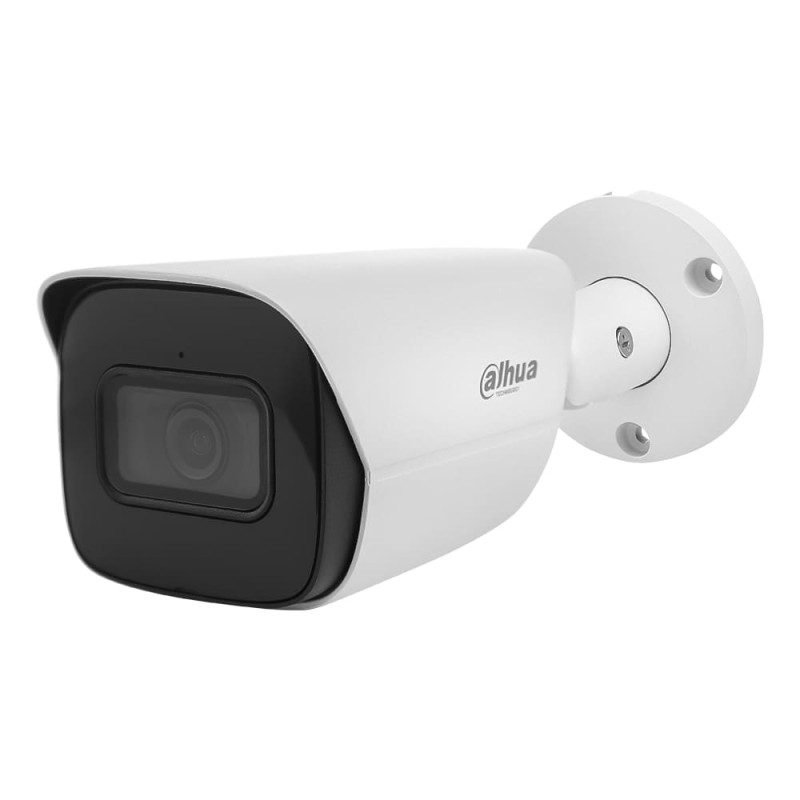

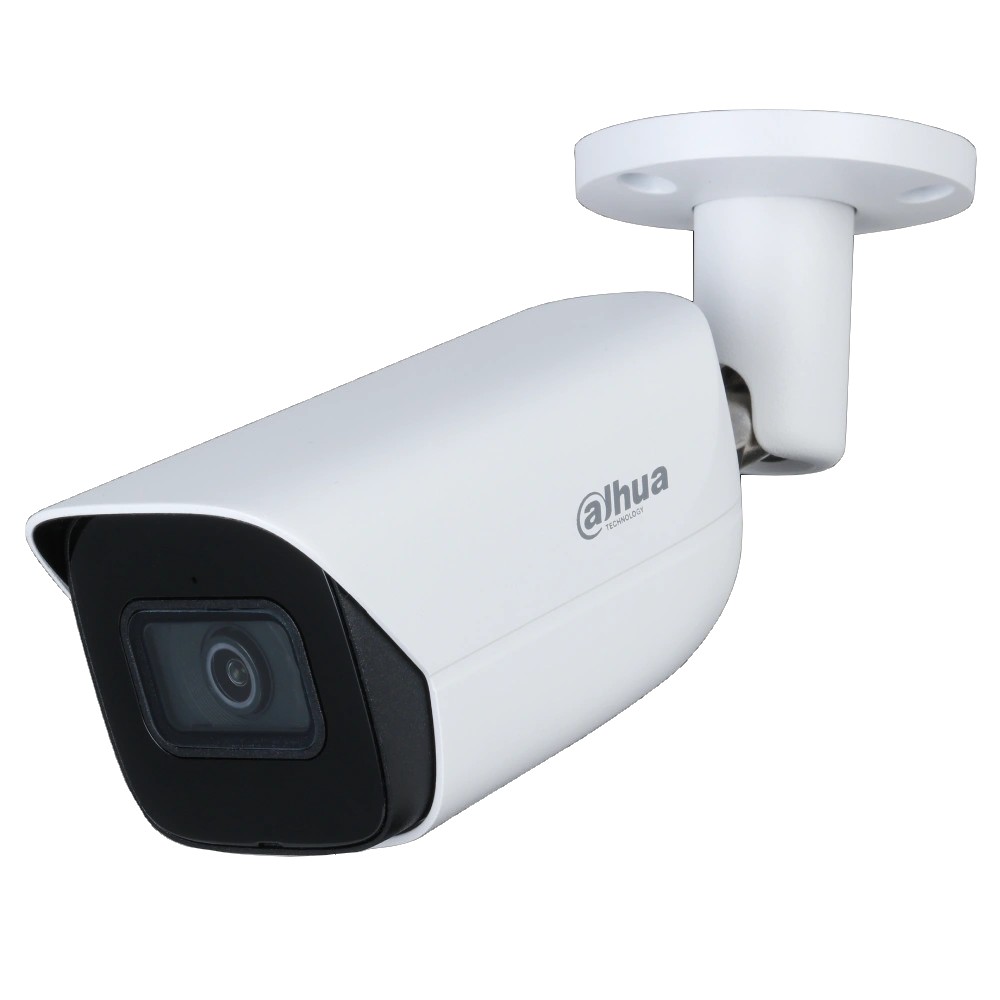

DAHUA DH-IPC-HFW3841E-S-S2 (8 MP/2.8 MM) - PoE IP CAMERA

8 MP 4K resolution on a 1/2.8" sensor: where the detail headroom comes from

The camera records 3840×2160 at 25 frames per second, which is four times the pixel count of the widespread 2 MP models, and that headroom is what lets you zoom into an already recorded fragment instead of physically moving the camera closer. A 1/2.8" sensor is generous for eight megapixels: the larger the physical light-collecting area, the less noise you get at dusk, and the rated 0.007 lux at F1.4 in colour mode confirms it. The 2.8 mm lens covers 107° horizontally, so a single unit takes in an entire suburban yard or a driveway entrance without blind sectors along the edges of the frame. The flip side of 4K is bandwidth and archive space: an 8 MP stream is roughly twice as heavy as a 4 MP one, which makes H.265 with Smart H.265+ and AI H.264/H.265 profiles a requirement rather than a bonus feature here. If your recorder is old and only handles H.264, your real recording depth will drop several times over, and that is worth checking before the purchase rather than after the first week.

What you actually see at 9, 17 and 35 metres: the official DORI figures

For the 2.8 mm lens the manufacturer publishes four verified distances: detection at 87.7 m, observation at 35.1 m, recognition at 17.5 m and identification at 8.8 m. In plain terms, at 87 metres you only know that something is moving; at 35 you can tell a person from a dog; at 17.5 you recognise someone you already know by build and clothing; and only closer than 8.8 metres do you get a frame suitable for confident facial identification. For a private yard this dictates the mounting geometry: the gate or the front door belongs in the first nine metres of the scene, not in its far corner. A licence plate is reliably readable with this wide optic at roughly the same 8-10 metres, which is why a driveway camera is aimed at an angle to the approach path rather than head-on across the whole yard. If the task is reading plates at 20-25 metres, a wide-angle model will not do it at all, and the correct answer is a separate longer-focal camera dedicated to that spot.

WizSense, SMD 4.0 and AI SSA: alarm filtering happens inside the camera

The model belongs to the WizSense 3 series, which means the neural-network analytics run on the camera's own processor and require neither a cloud subscription nor an AI recorder. SMD 4.0 classifies a moving object before the event ever becomes a notification, discarding branches in the wind, cloud shadows, rain, insects lit by the illuminator and the neighbour's cat on the fence. Tripwire and intrusion rules are classified the same way, so you can arm a reaction to people only, to vehicles only, or to both, with different settings for different zones of the frame. This matters more in practice than a spec sheet suggests: a camera without classification sends dozens of night-time alerts, the owner mutes them within a week, and the system stops being a security tool and becomes an archive that only gets opened after the fact.

Night and backlight: 30 metres of infrared plus genuine 120 dB WDR

The illumination here is conventional infrared — a single powerful IR emitter rated for up to 30 metres, with no white light at all, since the model name carries no -IL suffix and the night image is therefore black and white. That is a deliberate trade-off rather than a shortcoming: infrared is invisible to the eye, so the camera does not give itself away, does not shine into the neighbours' windows and still delivers a clean, contrasty silhouette at zero lux. What you give up is colour — the night recording will show a person in a jacket with a backpack, but not that the jacket was red and the car silver, and if those identifying details matter, the catalogue has Dahua models with the -IL suffix and warm white light. During the day and at dusk a true multi-exposure 120 dB WDR does the work, so a face entering the yard against the morning sun, or a car pulling out of a dark garage into daylight, does not collapse into a black blob. The 0.007 lux colour figure means the camera holds colour down to near-darkness using a street lamp or a porch light, and only then switches into infrared mode.

Power, mounting and storage: what to budget for

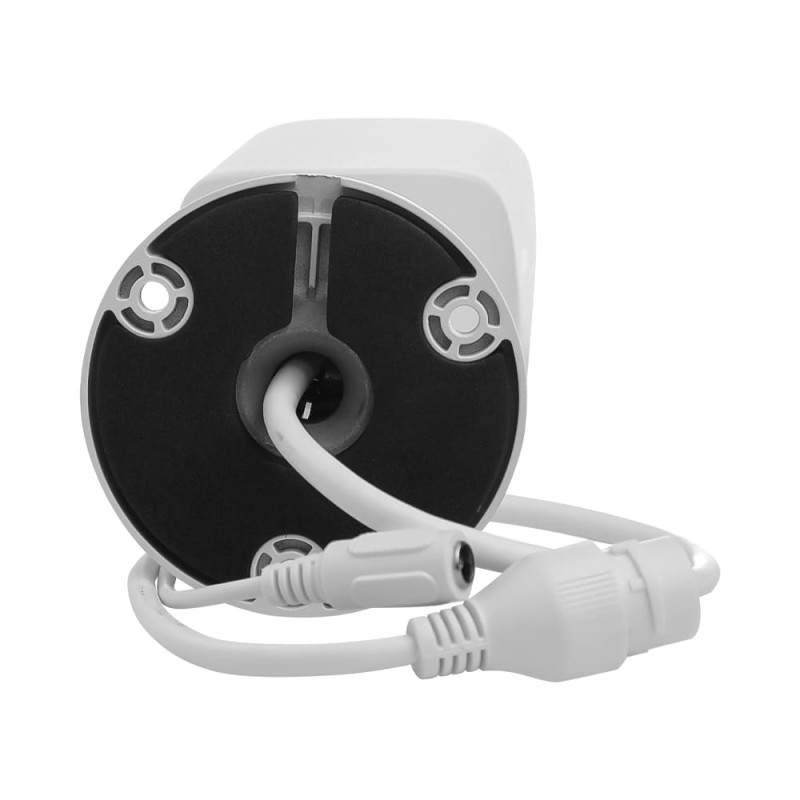

Power is dual — 12 V DC or PoE 802.3af over the same cable that carries the data; at maximum load, with WDR, full IR output and analytics all running, the camera draws 5.9 W from 12 V and 7.2 W over PoE. In system terms that translates into simple arithmetic: eight of these cameras on one switch amount to about 58 W of useful load, so an entry-level 60-65 W PoE switch will be running at its limit and the headroom is better planned in from the start. The -40…+60 °C range is built for year-round outdoor use with no canopy, and IP67 itself is a step above the common IP66, covering even brief immersion. Local recording goes to a microSD card of up to 256 GB, which works as a buffer when the network drops, while continuous storage of an 8 MP stream still belongs on a recorder or NAS, fed over ONVIF, RTSP, CGI and P2P. Note also that this is the "S" version rather than "AS": the built-in microphone is there, but alarm inputs and outputs and external audio connectors are not.

Where this camera belongs, and where it does not

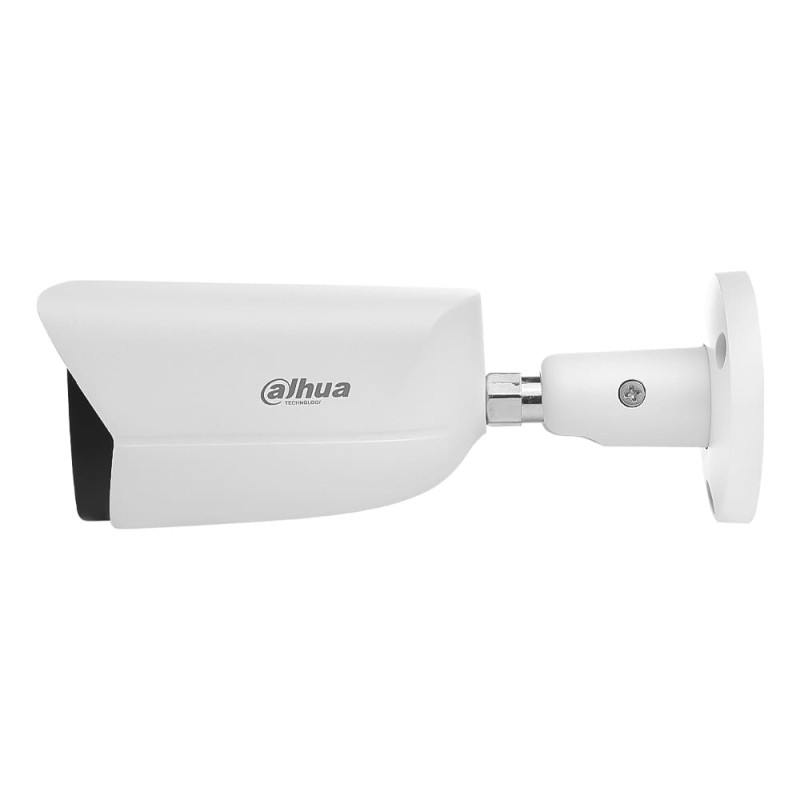

The natural habitat of the HFW3841E-S-S2 is a private yard, a driveway entrance, a small office car park or a shop frontage: 107° takes in the whole scene while eight megapixels leave enough headroom to zoom into the fragment you need afterwards. The bullet housing doubles as a deterrent here, since it is visible from a distance and a fair share of trespassing attempts end at the moment the camera is noticed. In a warehouse or workshop the model sits well under the ceiling over an aisle or a loading gate, where 30 metres of infrared is enough to see the entire run between racks at night without extra lighting. Where it does not belong is a small flat's room or hallway, in which 8 MP and a 30-metre illuminator are overkill and the housing is simply too big; nor will it solve a narrow-point task beyond 15 metres, which calls for a longer lens. There is a mounting caveat too: a bullet on a bracket below roughly two and a half metres can be twisted by hand or knocked aside, so stairwells and vandal-prone spots are better served by a vandal-resistant dome.

How it differs from neighbouring Dahua models in this catalogue

Its closest relative in terms of internals is the DH-IPC-HFW2849S-S-IL: the same 8 MP image and the same bullet form factor, but the second series instead of the third, and with the -IL suffix, meaning warm white light and a colour night image. The choice between them comes down to one question — do you want the smarter third-series analytics with SMD 4.0 and AI coding, or colour after dark? For a yard where clothing and vehicle colour matter, the -IL version earns its keep; for precise alarms and a camera that does not announce itself, this one does. The DH-IPC-HFW2849T-AS-IL is also 8 MP but uses a 3.6 mm lens with a 50-metre illuminator: a narrower field of view traded for twice the night reach, which suits a long fence or driveway rather than an overview shot. The entry-level DH-IPC-HFW1431S1 from the first series is 4 MP with no WizSense analytics whatsoever — noticeably more affordable, but it reacts to any motion, and models like it are where owners usually lose faith in notifications. Finally, the DH-IPC-HFW1230T1-ZS-S5 offers only 2 MP but adds a 2.8-12 mm varifocal lens, so if extreme detail is not the point and adjusting the angle on an already mounted camera is, that cheaper option is the more practical one.

If you are unsure how many cameras and which optics your particular site needs, send us a plan with dimensions and entry points and we will put together a layout showing exactly what each camera will see.
