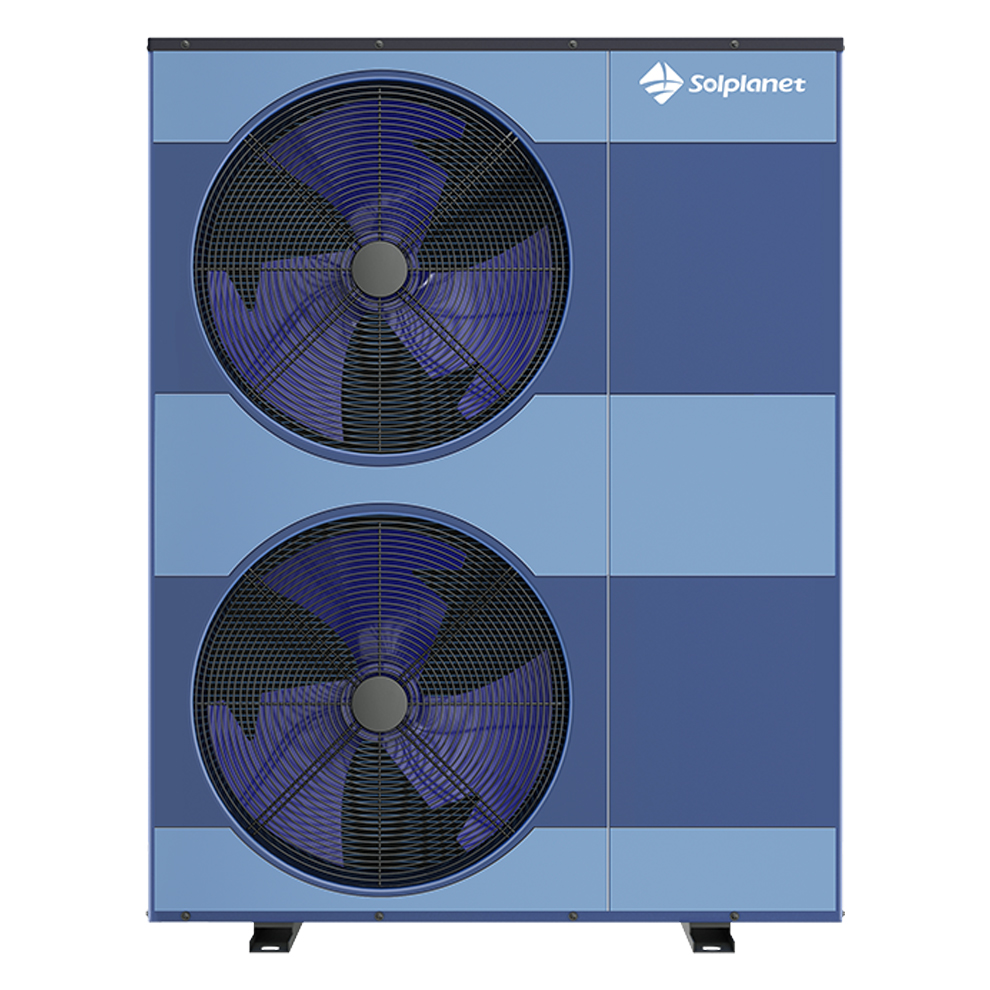

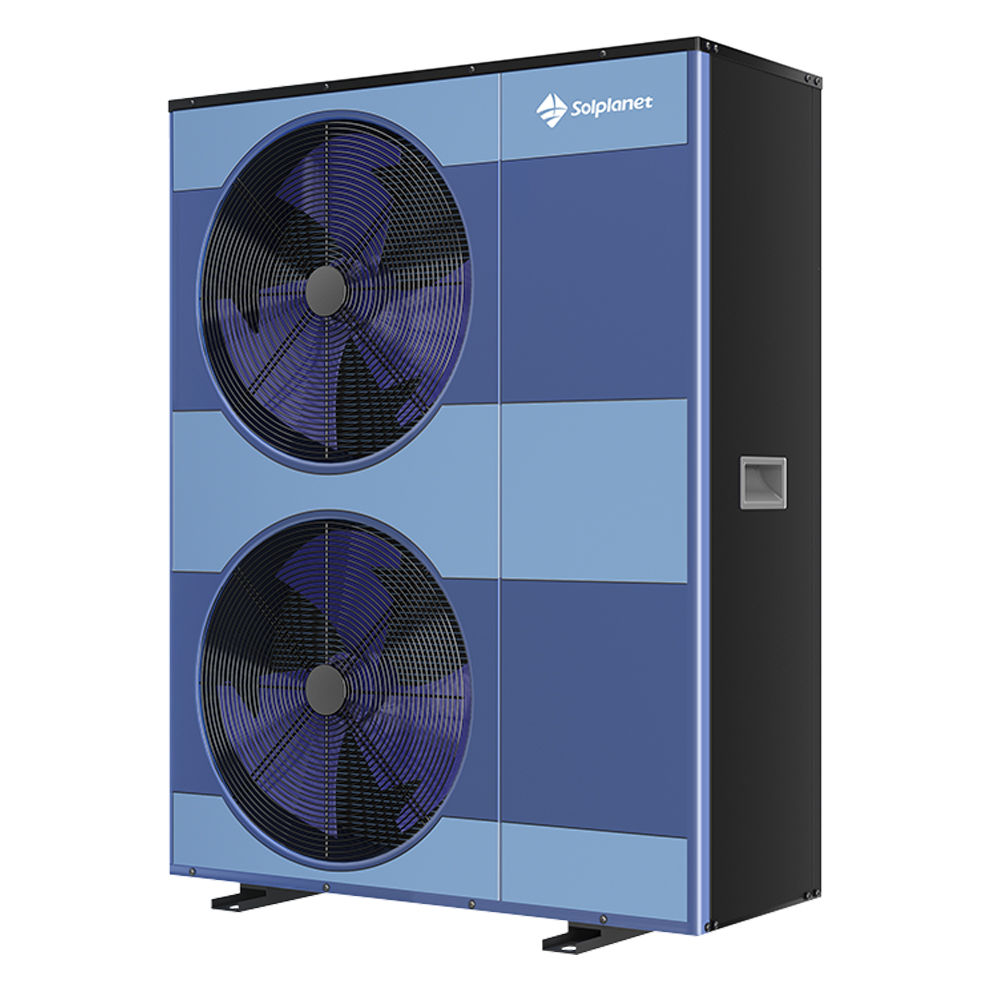

Solplanet SOL AIRPOWER SOL-024HC3 - three-phase heat pump 24 kW

Description Solplanet SOL AIRPOWER SOL-024HC3

The Solplanet SOL AIRPOWER SOL-024HC3 heat pump is the most powerful model in the SOL AIRPOWER line, designed for efficient heating, cooling and hot water preparation in residential and commercial premises. Heating and air conditioning specialists note it as a reliable solution for regions with cold climates where high performance is required. It is powered by three-phase current with a permissible voltage of 380-415 V, providing a nominal heating capacity of up to 26.1 kW and cooling capacity of up to 21.3 kW, using the environmentally friendly refrigerant R32.

About technology

Key technologies include Panasonic's full DC inverter compressor with EVI (Enhanced Vapor Injection), which optimizes operation at low temperatures, reducing energy consumption and increasing heating efficiency. An intelligent defrost system is activated by parameters such as the coil temperature below a set threshold, preventing icing in cold weather. A plate heat exchanger and finned evaporator provide rapid heat exchange, and an economizer stabilizes compression at temperatures below -25°C. Control is carried out via an integrated controller with a Wi-Fi module, which allows remote control, ECO mode settings, operation scheduling and monitoring. Additionally, there is a four-way valve for switching modes, an electronic expansion valve and pressure sensors for system protection.

Consider the advantages

The advantages of Solplanet SOL AIRPOWER SOL-024HC3 are obvious to professionals: the high seasonal coefficient of performance SCOP reaches 4.58 at a leaving water of 35°C and 3.42 at 55°C, which provides energy savings of up to 30% compared to traditional systems. The wide operating temperature range from -25°C to 45°C makes it versatile for heating in harsh winters and cooling in summer, with a maximum water temperature of up to 60°C. The low noise level of 58 dB(A) and the "silent" mode (compressor frequency limitation to 50 Hz) make the device comfortable for residential areas. Integration with solar systems, as in the Solplanet brand, allows the use of PV mode for additional savings, and the modular structure supports the network connection of several units. Users appreciate the simplicity: heating, cooling, hot water and combination modes are set intuitively, with high temperature sterilization and climate compensation functions.

Installation measures

The nuances of installation require the attention of professionals to avoid problems. The installation is carried out on a solid base (concrete or platform) with a height of at least 150 mm, taking into account the weight of 160 kg and the need for drainage. It is necessary to provide free space: at least 1 m between units, good ventilation and avoidance of contaminated areas. The water system must be closed, with a filter (at least 40 mesh), automatic water replenishment and pipe insulation (thickness ≥10 mm for DN20), taking into account water quality (pH 7-8.5, hardness ≤50 ppm). The electrical connection includes checking the voltage, load capacity and grounding, with a separate circuit and protection against leaks. Experts recommend installing an auxiliary pump if the main DC circulation pump does not provide the required pressure (drop 35 kPa at a flow of 4.12 m³/h). Before starting, check the direction of water flow, the absence of air in the system, and the parameter settings (e.g. host address "0" for the network). Regular maintenance, such as cleaning filters annually and checking valves quarterly, extends the service life.

Overall, the Solplanet SOL AIRPOWER SOL-024HC3 meets the needs for a powerful, energy-efficient heating and air conditioning solution, combining modern technology with practicality. Experts recommend it for large facilities where reliability and economy are important, with an emphasis on professional installation for optimal performance.

Characteristics Solplanet SOL AIRPOWER SOL-024HC3

Reviews about Solplanet SOL AIRPOWER SOL-024HC3 from real users

No reviews found
